Product introduction
  • 01 Product application
        • For heavy duty applications with torsion movements
        • Especially for robots and 3D movements
        • Almost unlimited resistance to oil, even bio-oils
        • Torsion ± 360°, with 1m cable length
        • Indoor and outdoor applications, UV-resistant
        • Robots, handling, lead screw actuators


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

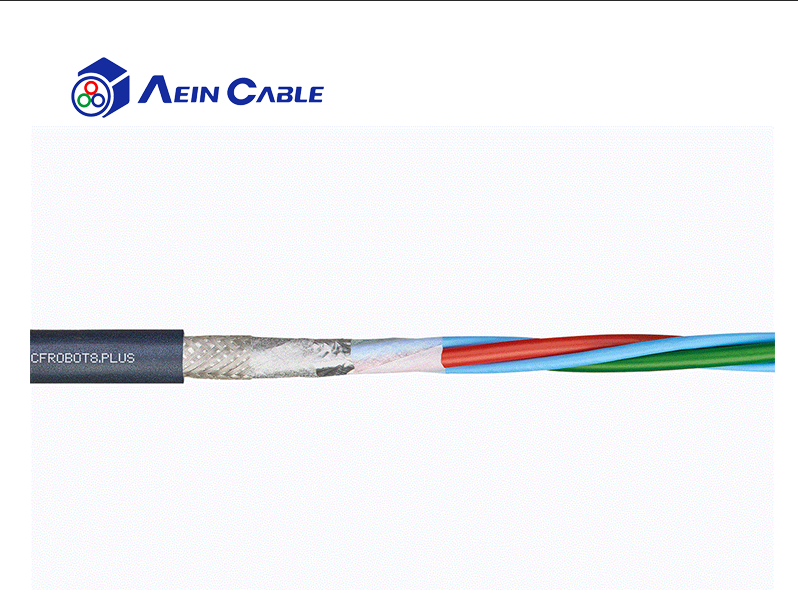

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.5 inch (95.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

2.8 inch (72.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.8 inch (45.0 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

-40 °F to +158 °F (-40 °C to +70 °C) (following DIN EN 60811-504)

Temperature, fixed

-58°F to + 158°F (-50°C to +70°C)(following DIN EN 50305)

max. twisted

360 °/m

a max.twisted

60 °/s²

Length of travel

Robots and motions in 3D area, Class 1


Torsion ± 360°, with 1 m cable length
Cable structure

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)


Conductor insulation
According to bus specification

Overall shield
Torsion-resistant tinned braided copper shield. Coverage approx. 80 % optical

Intermediate layer
Foil taping over the external layer.


Unshielded

No


Outer jacket Low-adhesion, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (following EN50363-10-2).


Jacket color

Dark blue
