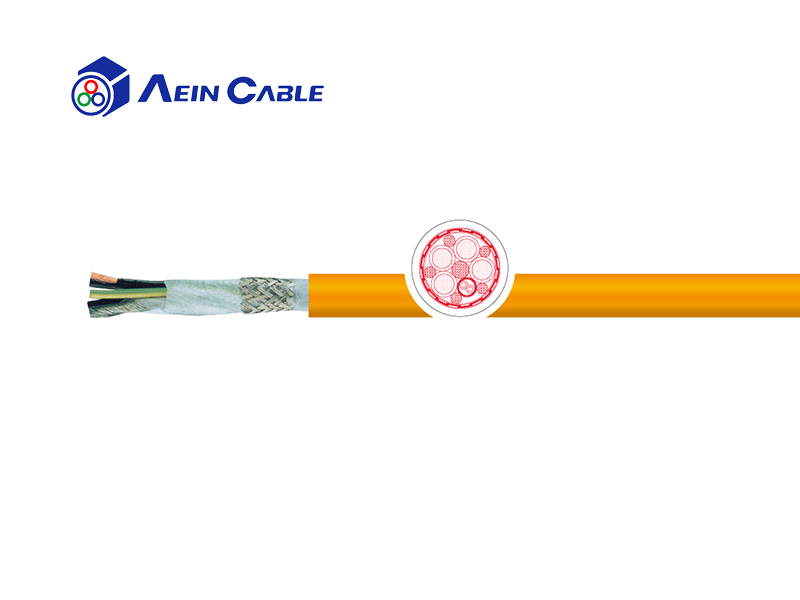

Conductor material:
|
Bare copper strand
|
|
Conductor class:
|
Acc. to DIN VDE 0295 cl. 5 resp. IEC 60228 cl. 5
|
|
Core insulation:
|
PELON®2
|
|
Core identification:
|
Supply cores: BK w. WH print U/L1/C/L+; V/L2; W/L3/D/L- & GNYE; control cores: 1 pair, BK & WH; triple: BK with WH numerals 1. 2, 3
|
|
Shield:
|
Control pair resp.triple bundle with tinned copper shield
|
|
Overall stranding:
|
Cores and pair resp. triple element stranded together with high flexible fillers
|
|
Shield3:
|
Copper braid tinned, opt. coverage appr. 80 %
|
|
Outer sheath:
|
PVC
|
|
Sheath colour:
|
Orange, RAL 2003
|
|
Rated voltage:
|
Uo/U 600/1.000 V; UL & CSA: 1.000 V
|
|
Testing voltage:
|
4 kV
|
|
Conductor resistance:
|
At +20 °C acc. to DIN VDE 0295 cl. 5/IEC 60228 cl. 5
|
|
Insulation resistance:
|
At 20° C ≥ 20 GOhm x km
|
|
Min. bending radius fixed:
|
5 x d
|
|
Min. bending radius moved:
|
15 x d
|
|
Operat. temp. fixed min/max:
|
-30°C / +80°C
|
|
Operat. temp. moved min/max:
|
-5°C / +80°C
|
|
Burning behavior:
|
Self-extinguishing and flame-retardant acc. to IEC 60332-1; UL: VW1; CSA: FT1
|
|
Resistant to oil:
|
Acc. to ISO 6722, EN 60811-404 (only mineral oil)
|
|
Approvals:
|
UL/CSA - cURus 1.000 V, 80 °C
|
