Min. bend radius, e-chain® (factor)

5.0 x d

Min. bend radius, e-chain®

1.3 inch (32.5 mm)

Min. bend radius, flexible (factor)

4.0 x d

Min. bend radius, flexible

1.0 inch (26.0 mm)

Min. bend radius, fixed (factor)

3.0 x d

Min. bend radius, fixed

0.8 inch (19.5 mm)

Temperature, e-chain® min.

-4 °F (-20 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

16 ft/s (5 m/s)

a. max.

262.5 ft/s² (80 m/s²)

Length of travel

Travels up to 328 ft (100 m)

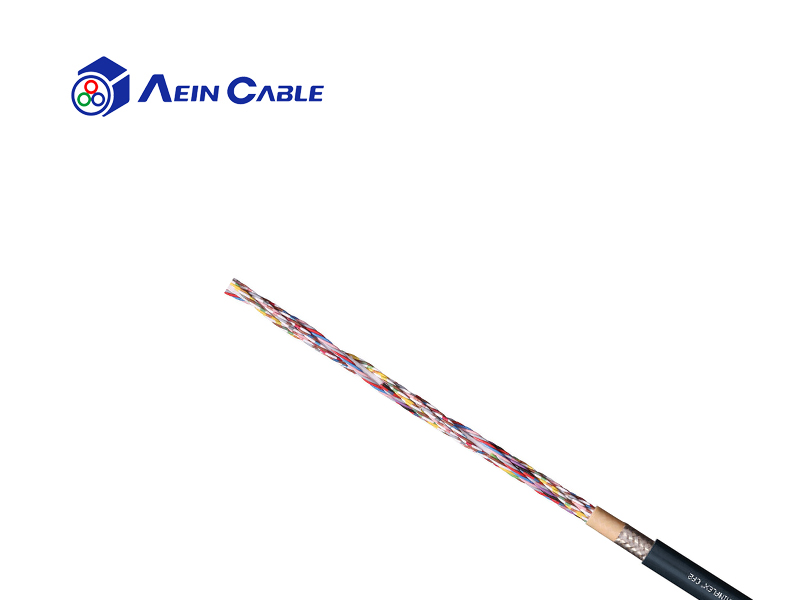

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

Conductors stranded in short pitch in one position

Conductor identification

Colour code according to DIN 47100

Inner jacket

PVC mixture suited to the requirements in e-chains®

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.

Unshielded

No

Outer jacket

Low adhesion, highly abrasion resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)

Jacket color

Anthracite grey (similar to RAL 7016)
