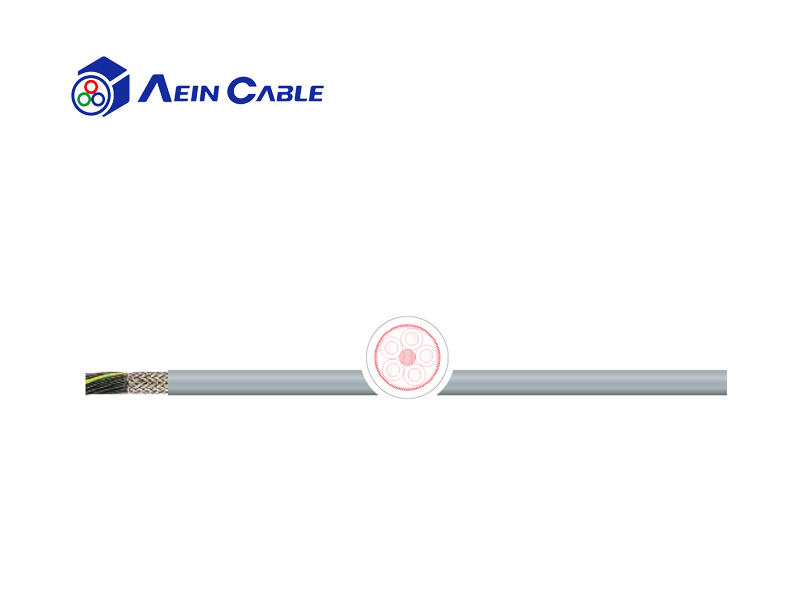

Conductor material:
|
Bare copper strand
|
Conductor class:
|
Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
|
Core insulation:
|
PVC
|
Core identification:
|
Acc. to DIN VDE 0293 black wires with white numerals, 1 x GNYE
|
Overall stranding:
|
Cores stranded in layers
|
Shield3:
|
Copper braid tinned, coverage approx. 85%
|
Outer sheath:
|
PVC
|
Sheath colour:
|
Grey RAL 7001
|
Rated voltage:
|
Acc. to IEC: 300/500 V; acc. to UL: 600 V
|
Testing voltage:
|
Core/core: 4 kV; core/shield: 2 kV
|
Conductor resistance:
|
At +20 °C acc. to DIN VDE 0295 cl. 5 resp. IEC 60228 cl. 5
|
Insulation resistance:
|
At +20 °C ≥ 20 MΩ x km
|
Current-carrying-capacity:
|
Acc. to DIN VDE
|
Min. bending radius fixed:
|
4 x d
|
Min. bending radius moved:
|
10 x d < 3m TL | 12,5 x d ≥ 3m TL
|
Operat. temp. fixed min/max:
|
-40 °C / +90 °C
|
Operat. temp. moved min/max:
|
-5 °C / +90 °C
|
Burning behavior:
|
Flame-retardant acc. to IEC 60332-1-2, FT1, VW-1
|
Approvals:
|
UL/CSA - cURus 600V, 90°C
|
Speed:
|
Self-supporting: max. 3 m/s
|
Acceleration:
|
Max. 10 m/s²
|
