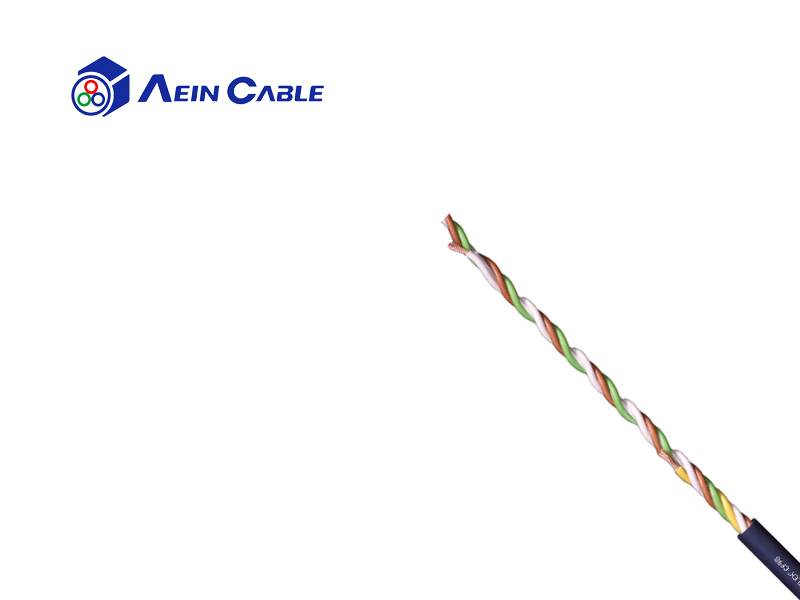

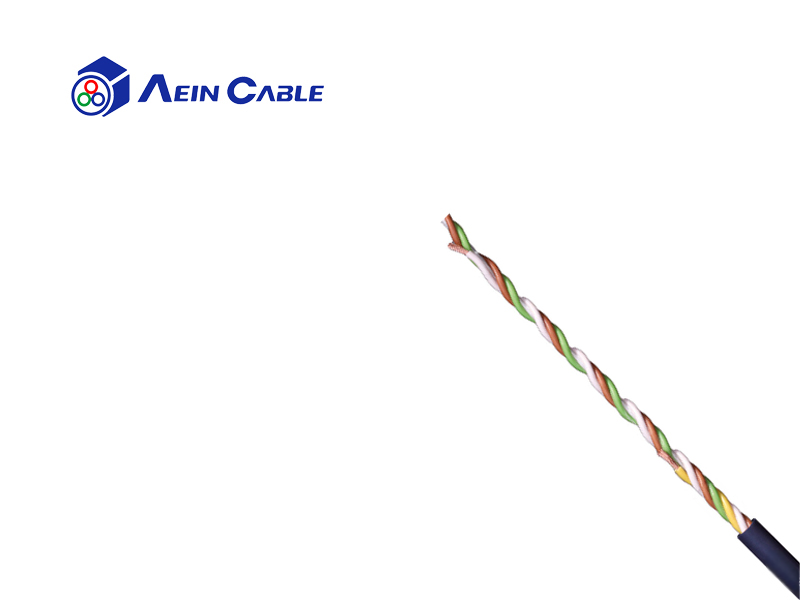

Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS Cable CF298 Data Cable

Product introduction

01 Product application
Typical mechanical application areas

For heaviest duty applications and especially small radii down to 4xd

Almost unlimited resistance to oil, even bio-oils

Indoor and outdoor applications, UV-resistant

Especially for short, very fast applications with small radii and restricted installation space

Pick and place machines, automatic doors, cleanroom, very fast handling
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

	Min. bend radius, e-chain® (factor)	4.0 x d
	Min. bend radius, e-chain®	0.7 inch (18.0 mm)
	Min. bend radius, flexible (factor)	4.0 x d
	Min. bend radius, flexible	0.7 inch (18.0 mm)
	Min. bend radius, fixed (factor)	3.0 x d
	Min. bend radius, fixed	0.5 inch (13.5 mm)
	Temperature, e-chain® min.	-31 °F (-35 °C)
	Temperature, e-chain® max.	194 °F (90 °C)
	Temperature, flexible	-58 °F to 194 °F (-50 °C to +90 °C)
	Temperature, fixed	-67 °F to 194 °F (-55 °C to +90 °C) (following DIN EN 50305)
	v max., unsupported	33 ft/s (10 m/s)
	v max. gliding	20 ft/s (6 m/s)
	a. max.	328.1 ft/s² (100 m/s²)
	Length of travel	Travels up to 328 ft (100 m)
	Torsion	±90°, with 1 m cable length

	Conductor	Conductor made of highly flexible special alloy
	Conductor insulation	Mechanically high-quality TPE mixture
	Conductor construction	Cores stranded in one layer with especially short pitch length
	Conductor identification	Colour code according to DIN 47100
	Element jacket	TPE mixture adapted to suit the requirements in e-chains®.
	Unshielded	Yes
	Outer jacket	Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.
	Jacket color	Steel blue (similar to RAL 5011)
