Product introduction

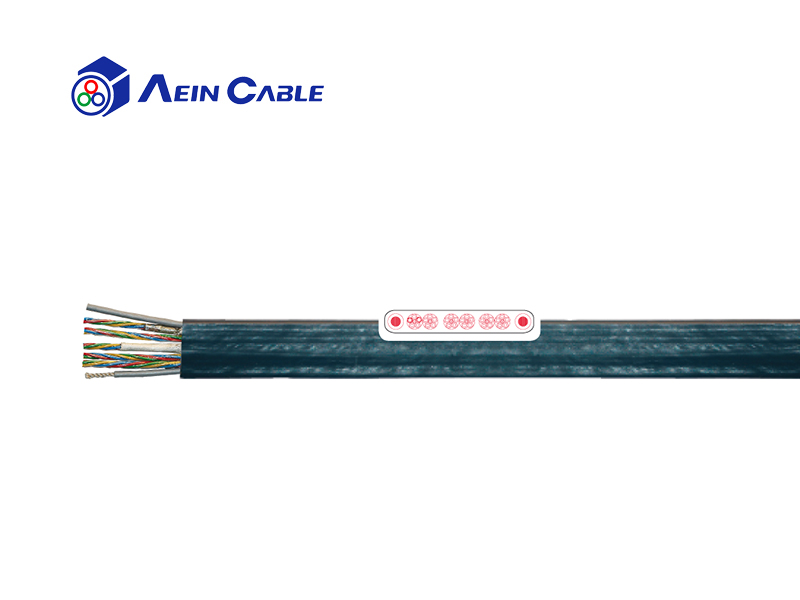

01 Product application shielded and unshielded power, control and signal transmission cable with supporting element for crane facilities, current entries to high rack transport vehicles, in industrial television on moving cameras and machine tools. Applicable for all control, measure and telecommunication systems. Suitable for dry and humid rooms.
02 Product characteristics•significant smaller bending radius compared to round cables •free from lacquer damaging substances and silicone (during production) •cold resistant types KYFLTY, KYFLTFY, KYCFLTY, KYFLTCY
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6
Core insulation:	PVC
Core identification:	Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with or without GNYE resp. special colour
Stranding:	Cores resp. bundles parallel side by side
Shield:	Single core or bundle with copper braid or wrapped wire bare or tinned; coverage ca. 70% - 80%
Outer sheath:	PVC
Sheath colour:	Black, RAL 9005
Rated voltage:	0,5 mm² = 300V; > 1,0 mm² = Uo/U 300/500 V
Testing voltage:	1,2 kV / 2 kV
Current-carrying-capacity:	Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed:	10 x d
Min. bending radius moved:	10 x d
Operat. temp. fixed min/max:	H05...: -25 °C / +60 °C; KY...: -40 °C / +70 °C
Operat. temp. moved min/max:	H05...: -25 °C / +60 °C; KY...: -25 °C / +60 °C
Temp. at conductor:	+70 °C
Burning behavior:	Self-extinguishing and flame retardant acc. to IEC 60332-1
Suspension height:	See table
Standard:	Similar to DIN VDE 0250
