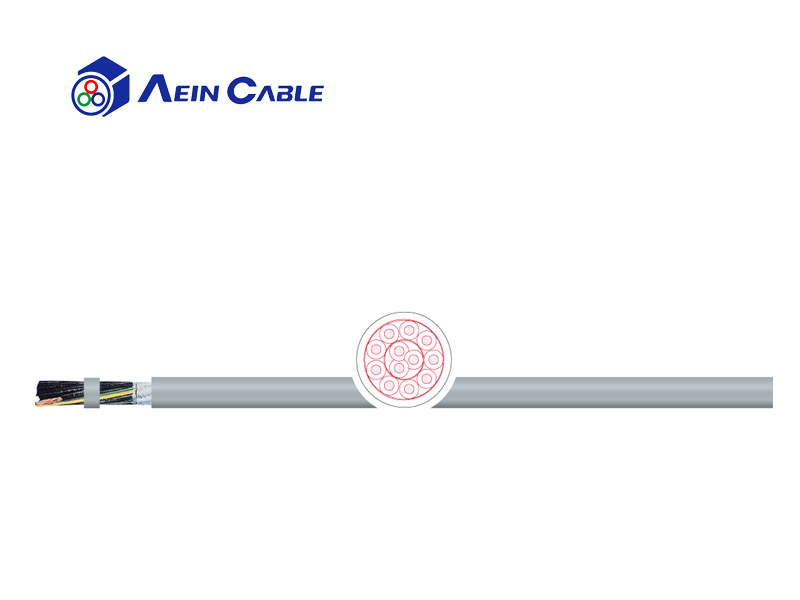

Alternative TKD KAWEFLEX 6100 ECO SK-PVC UL/CSA Control Cable

Good CableChoose AEIN for international markets!

187 0215 2883

Location： Home > Product > By Alternative Brand > TKD CABLE > Alternative TKD KAWEFLEX 6100 ECO SK-PVC UL/CSA Control Cable

Product introduction

01 Product application As flexible power and control cable for high electrical and light to medium mechanical requirements in drag chains and motion drive systems in machine and plant engineering.
02 Product characteristics •low adhesion, silicone-free •oilresistant acc. to DIN EN 60811-404 (only mineral oil) and largely resistant to grease, coolant fluids and lubricants
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation:	PVC
Core identification:	Acc. to DIN VDE 0293 black wires with white numerals, 1 x GNYE
Overall stranding:	Cores stranded in layers
Outer sheath:	PVC
Sheath colour:	Grey RAL 7001
Rated voltage:	Acc. to IEC: 300/500 V; acc. to UL: 600 V
Testing voltage:	4 kV
Conductor resistance:	At +20 °C acc. to DIN VDE 0295 cl. 5 resp. IEC 60228 cl. 5
Insulation resistance:	At +20 °C ≥ 20 MΩ x km
Current-carrying-capacity:	Acc. to DIN VDE
Min. bending radius fixed:	4 x d
Min. bending radius moved:	10 x d < 3 m TL \| 12,5 x d ≥ 3 m TL
Operat. temp. fixed min/max:	-40 °C / +90 °C
Operat. temp. moved min/max:	-5 °C / +90 °C
Burning behavior:	Flame-retardant acc. to IEC 60332-1-2, FT1, VW-1
Approvals:	UL/CSA - cURus 600V, 90°C
Speed:	Self-supporting: max. 3 m/s
Acceleration:	Max. 10 m/s²
