Product introduction
  • 01 Product application
      Typical mechanical application areas
      • For heaviest duty applications and especially small radii down to 4xd
      • Almost unlimited resistance to oil, even bio-oils
      • Indoor and outdoor applications, UV-resistant
      • Especially for short, very fast applications with small radii and restricted installation space
      • Pick and place machines, automatic doors, cleanroom, very fast handling
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

4.0 x d

Min. bend radius, e-chain®

0.9 inch (24.0 mm)

Min. bend radius, flexible (factor)

4.0 x d

Min. bend radius, flexible

0.9 inch (24.0 mm)

Min. bend radius, fixed (factor)

3.0 x d

Min. bend radius, fixed

0.7 inch (18.0 mm)

Temperature, e-chain® min.

-31 °F (-35 °C)

Temperature, e-chain® max.

194 °F (90 °C)

Temperature, flexible

-58 °F to 194 °F (-50 °C to +90 °C)

Temperature, fixed

-67 °F to 194 °F (-55 °C to +90 °C) (following DIN EN 50305)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

20 ft/s (6 m/s)

a. max.

328.1 ft/s² (100 m/s²)

Length of travel

Travels up to 328 ft (100 m)

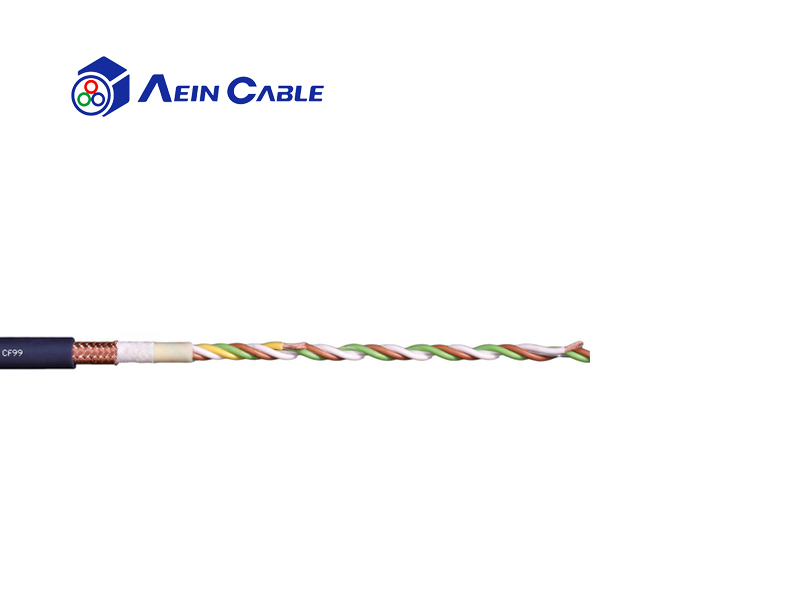

Cable structure

Conductor

Conductor made of highly flexible special alloy

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

Cores stranded in one layer with especially short pitch length

Conductor identification

Colour code according to DIN 47100

Element jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Highly flexible, alloyed special shield. Cover about 70% linear, about 90% optical.



Unshielded

No

Outer jacket

Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.



Jacket color

Steel blue (similar to RAL 5011)
