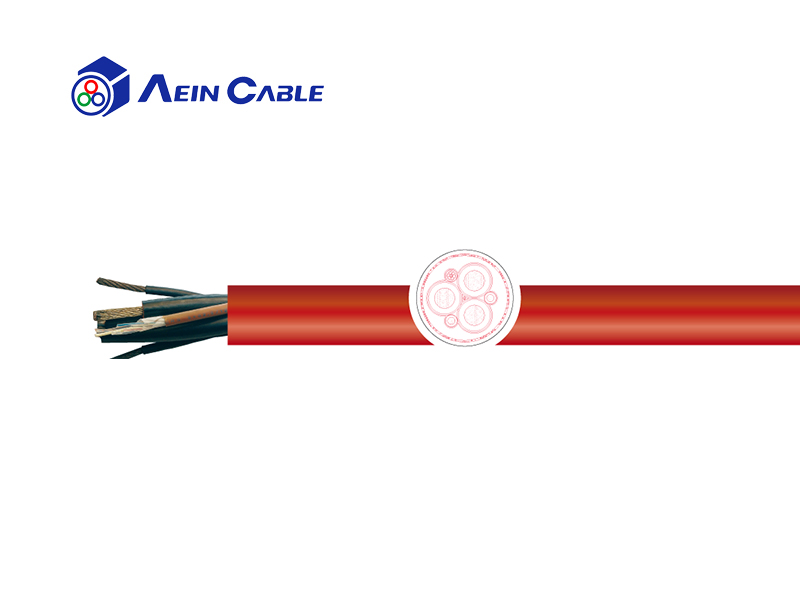

Conductor material:
|
Bare copper strand; FO:Graded index-fibre 62,5/125 µ
|
|
Conductor class:
|
Acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5
|
|
Core insulation:
|
Rubber compound; FO: with jelly filled PETP tubes in an envelope of heat resistant compound
|
|
Core identification:
|
Natural coloured with inner and outer black semi-conductive layer
|
|
Overall stranding:
|
Cores layed up around conductive filler with aramid rope in the center, splitted earth conductors and FO element in the interstices
|
|
Inner sheath material:
|
Rubber compound
|
|
Outer sheath:
|
Rubber compound
|
|
Sheath colour:
|
Red
|
|
Rated voltage:
|
3,6/6 kV to 12/20 kV
|
|
Testing voltage:
|
11 kV to 29 kV
|
|
Current-carrying-capacity:
|
Acc. to DIN VDE, see Technical Guideline
|
|
Min. bending radius fixed:
|
Acc. to DIN VDE 0298 part 3
|
|
Min. bending radius moved:
|
Acc. to DIN VDE 0298 part 3
|
|
Operat. temp. fixed min/max:
|
-40 °C / +80 °C
|
|
Operat. temp. moved min/max:
|
-25 °C / +80 °C
|
|
Temp. at conductor:
|
+90 °C
|
|
Burning behavior:
|
Self-extinguishing & flame retardant acc.to IEC 60332-1
|
|
Torsion:
|
± 50 ° / m
|
|
Tensile strength:
|
Tensile strength max. 20 N / mm²
|
