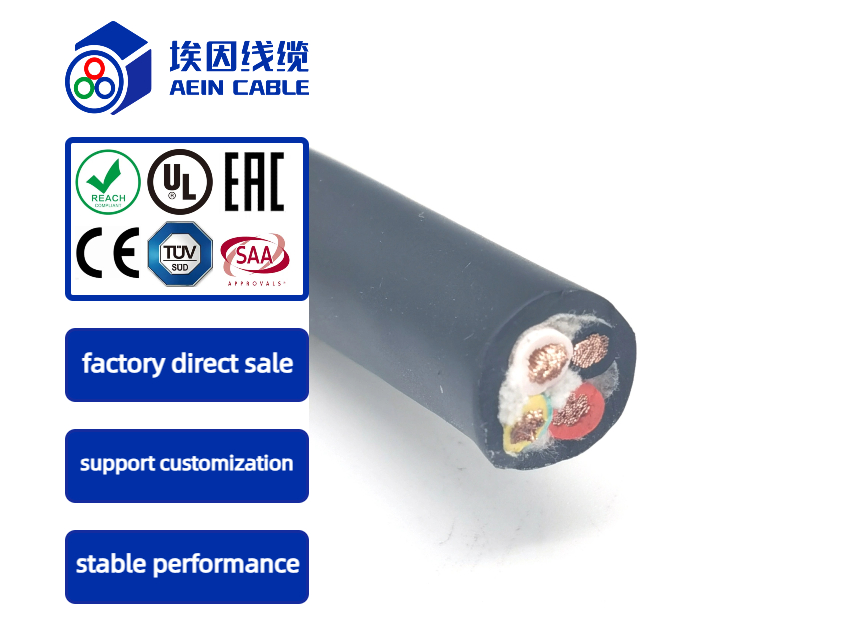

ANT1001 low temperature drag chain cable

The cable is widely used in slow speed automatic CNC machining, servo system, towing chain system signal and control use. It can also be used in dry and wet indoor and outdoor environments as well as in areas such as cranes and conveying facilities. Itis also suitable for data transmission, measurement, feedback, encoders, rotary transformers, tachometers, signals and system applications in automated production processes.

inquiry
  • Product details
Product introduction
  • 01 Product application

    The cable is widely used in automatic CNC machining, servo system, towing chain system signal and control. It can also be used in dry and wet indoor and outdoor environments as well as in areas such as cranes and conveying facilities. It is also suitable for data transmission, measurement, feedback, encoders, rotary transformers, tachometers, signals and system applications in automated production processes.

  • 02 Product characteristics

    ·UV, ozone resistance and weather resistance according to EN 50396 and HD 605 S2
    · Resistant to coolant, microorganisms, weak acid and alkali
    · Low temperature resistance -40 degrees

  • Technical certification03

    · Comply with RoHS standards
    ·Comply with Directive 2014/35/EU-Guideline (" Low Voltage Directive ")CE·Comply with EAC certification·comply with GOST standards

Product structure

Conductor material: bare copper

Conductor class: According to DIN VDE 0295 Class 6 conductors or. IEC 60228 Class 6 conductors

Core insulation: cold resistant PVC

Core identifier :① core color separation ② core color separation + ink dot separation ③ core color separation + yellow/green line separation

Outer sheath: cold resistant PVC

Jacket color: Black (RAL 9005), grey (RAL 7001), Orange (RAL 2004), green (RAL 6018)

Rated voltage :25 and above :0.6/1KV, 0.75 to 16:300/500V:0.5 and below 300/300V

Test voltage :3500V, 2000V, 1500V

Conductor resistance :+20°C according to DIN VDE 0295 Class 6 conductors or IEC 60228 Class 6 conductors.

Small bending radius fixed :4 x d

Small bending radius movement: 7.5 x d

Moving speed: Self-supporting: max. 1.5m /s, coasting: max.1 m/s

Conductor length: Self-supporting/coasting max.400 m

Acceleration :max.100 m/s²

Bending cycle :<20 times /Min, life >5 million times

Operating temperature fixed minimum/maximum value :-40°C/+70°C

Flame retardant rating: according to IEC 60332-1-2
