Conductor material: bare copper

Conductor class: According to DIN VDE 0295 Class 6 conductor or IEC 60228 Class 6 conductor

Core wire insulation :PVC-J-70-001(7088B)

Core identifier :<0.5 mm²; 5 core and below using color separation, in line with n,DIN 47100,5 multi-core cables using core wire color separation, white ink dot distinction; ≥0.5 mm²;  Color separation is used for 5-core and below, including yellow/green wire, in line with n.DIN 47100, multi-core cables with more than 5-core black core wire, white ink numbered distinction (customized according to special requirements)

Power cable: Black sheath white print U/L1:V/L2:W/L3; GN/PE

Cabling: Cores <10: cores are twisted in layers at short pitch: cores ≥11: cores are twisted twice

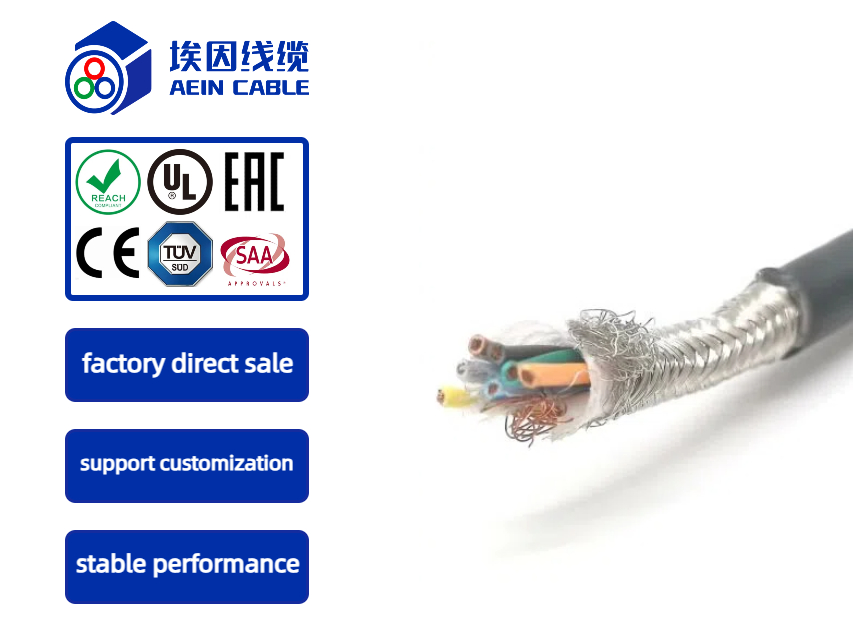

Shielding: Copper wire braided shielding shielding density ≥80%

Outer sheath :DQPVC-H-70-002(B-70A)

Jacket color: black (RAL 9005), grey (RAL 7001), orange (RAL 2004), green (RAL 6018)

Rated voltage :25 and above :0.6/1KV, 0.75 to 16:300/500V:0.5 and below 300/300V

Test voltage :3500V, 2000V, 1500V

Conductor resistance :+20 °C conforms to DIN VDE 0295 Class 6 conductors or IEC 60228 Class 6 conductors

Small bending radius fixed :4 x d

Small bending radius movement :7.5 x d

Moving speed: Self-supporting: max. 1.5m /s, coasting: max.1 m/s

Conductor length: Self-supporting/coasting max.400 m

Acceleration :max.100 m/s²

Bending cycle :<20 times /Min, life >5 million times

Operating temperature fixed minimum/maximum value :-30°C/+70°C

Minimum/maximum operating temperature shift :-15°C/+70°C

Flame retardant rating: according to IEC 60332-1-2.

Certification :CE
