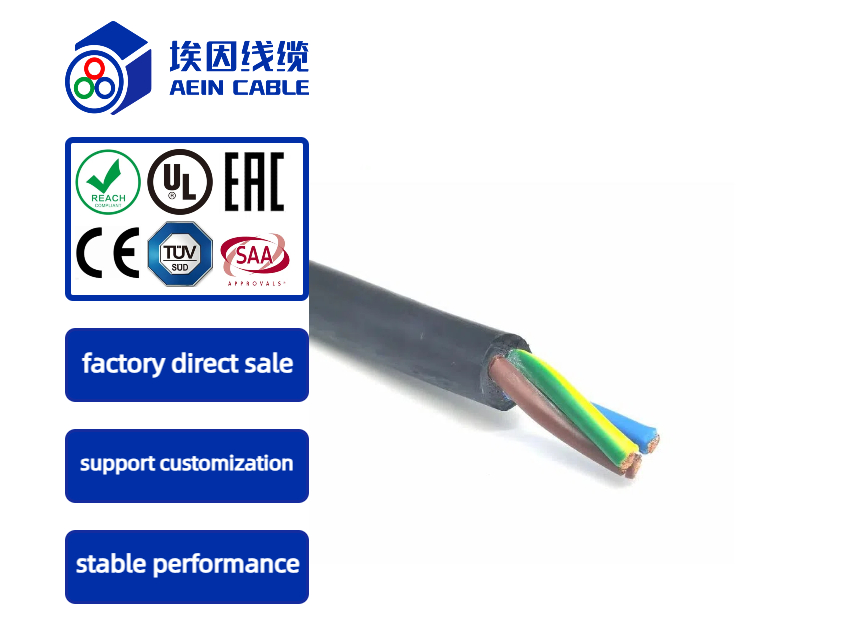

Conductor material: bare copper

Conductor class: According to DIN VDE 0295 Class 6 conductors or. IEC 60228 Class 6 conductors

Core wire insulation :PVC-J-70-001(7088B)

Core identification:

Control cables and signal cables :<0,5mm²:5 core and below using color separation, IN line with n.DIN 47100, more than 5 core multi-core cables using core wire color separation, white ink dot separation; ≥ 0,5mm²: Color separation is used for 5-core and below, including yellow/green wire, in line with n.DIN 47100, black core is used for multi-core cables with more than 5 cores, and white ink numbering is used (customized according to special requirements)

Power cable: Black sheath white print U/L1; V/L2; W/L3; GN/PE

Cable forming: Cores <10: cores are twisted in layers with short pitch; Core wires ≥11: The core wires are twisted twice

Outer sheath :DQPVC-H-70-002(B-70A)

Jacket color: black (RAL 9005), grey (RAL 7001), orange (RAL 2004), green (RAL  6018)

Rated voltage :25 and above :0.6/1KV, 0.75 to 16:300/500V:0.5 and below 300/300V

Test voltage :3500V, 2000V, 1500V

Conductor resistance :+20°C according to DIN VDE 0295 Class 6 conductors or IEC 60228 Class 6 conductors.

Small bending radius fixed :4 x d

Small bending radius movement :7.5 x d

Moving speed: Self-supporting: max. 1.5m /s, coasting: max.1 m/s

Conductor length: Self-supporting/coasting max.400 m

Acceleration :max.100 m/s²

Bending cycle :<20 times /Min, life >5 million times

Operating temperature fixed minimum/maximum value :-30°C/+70°C

Minimum/maximum operating temperature shift :-15°C/+70°C

Flame retardant rating: according to IEC 60332-1-2
