F-CVV-S Japanese JIS standard industrial PVC sheathed cable

FCVVS Japanese JIS standard industrial cable is mainly used for monitoring electrical equipment and power station control circuits. It can be installed outdoors or in dry or wet cable trenches.

inquiry

Product details

Product introduction

01 Product application
FCVVS Japanese JIS standard industrial cable is mainly used for monitoring electrical equipment and power station control circuits. It can be installed outdoors or in dry or wet cable trenches.
02 Product characteristics
• Flame resistance
03 Technical certification •conform to RoHS,

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

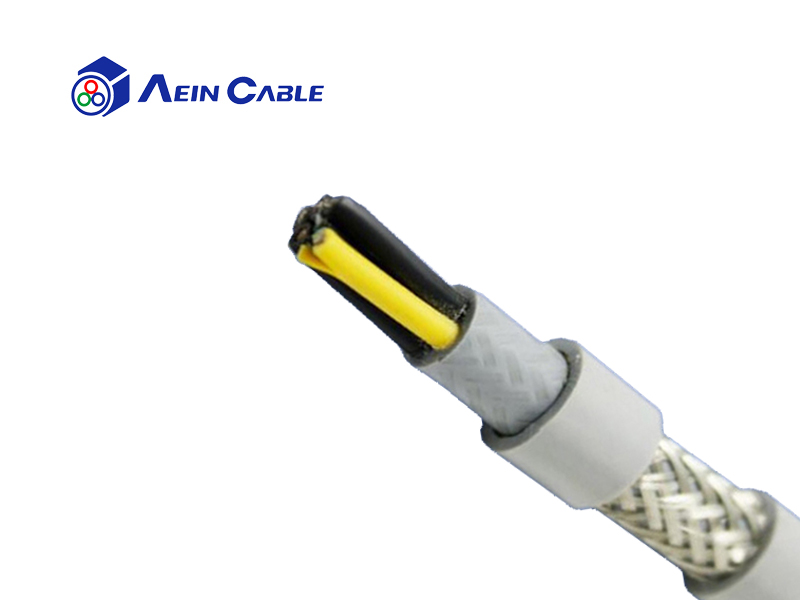

Product structure

Conductor material: bare copper strand

Core insulation: PVC

Color: 2-4 cores - black, white, red, green

More than 4 cores: black core with digital marking

Filling: non-hygroscopic material (optional)

Adhesive tape: polyester tape (Mylar) (optional)

Inner sheath: polyvinyl chloride (PVC)

Shielding: annealed copper tape

Outer sheath: PVC

Outer sheath color: black RAL9005: gray RAL7001 (optional)

Rated voltage: 600V

Test voltage: 3.5kV

Maximum conductor temperature: 70℃

Product identification: Aein bei ke® SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter mark

Product parameter

Click to download the product documentation
