Product introduction
-
01 Product application
Suitable for indoor and outdoor installation, also suitable for wet places and external installation; For mounting on surface-mounted or metal structures; It is allowed to be buried directly in the ground.
-
02 Product characteristics
· Flame retardant in accordance with IEC 60332-1-2
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing.
-
03 Technical certification
· RoHS compliant
· Compliance with 2014/35/EU-Guideline(" Low Voltage Directive ")CE
· Comply with TUV certification

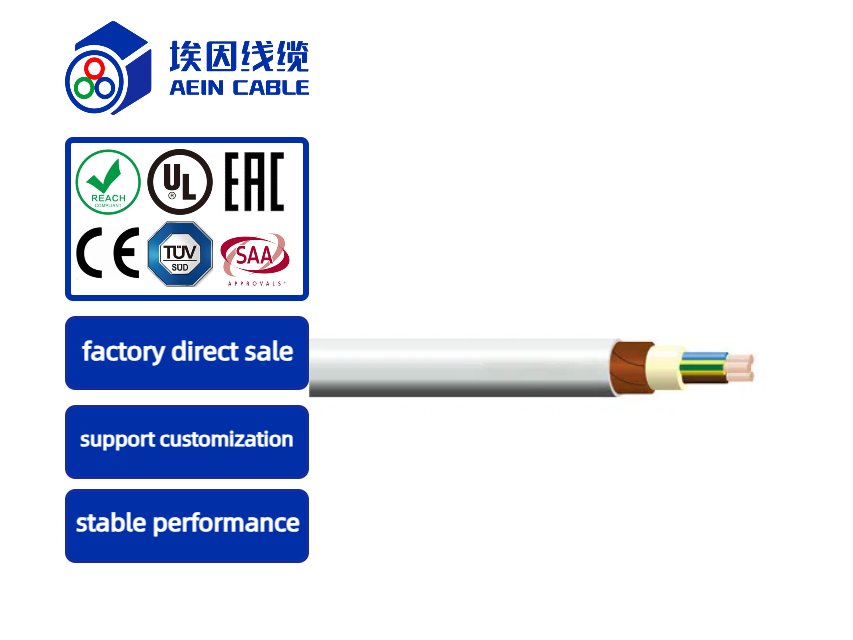

Product structure
Conductor material: bare copper wire
Conductor type: According to IEC 60228 cI.5 standard cI.2 Optional
Insulation :G16 rigid ethylene-propylene rubber (HEPR) compound
Sheath: Type R16 PVC
Core identification: two cores red and blue; Three core red yellow green; Four core red yellow green blue; Five core red yellow green blue yellow/green
Jacket color: customizable
Stranding: stranding in layers
Rated voltage :0.6/1 kV
Test voltage: 3.5 kV
Conductor resistance: According to IEC 60228 cI.5 standard
Conductor frontal operating temperature :90°C
When short-circuiting (5s or less) occurs, the conductor temperature does not exceed 250°C
Small bending radius fixed :7.5 x d
Small bending radius movement :15 x d
Solidification temperature: -15°C/+90°C
Moving temperature :-5°C/+90°C
Flame retardant grade :IEC 60332-1-2, EN50265-2-1
Standard :IEC60502-1, DIN VDE 0295
Product identification :Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD Model Specification Voltage CE meter standard
