Product introduction
-
01 Product application
Suitable for indoor and outdoor installation, also suitable for wet places; For fixed installation on surface mounting or metal structures; It is allowed to be buried directly in the ground.
-
02 Product characteristics
· Flame retardant in accordance with IEC 60332-1-2
· Halogen-free according to IEC 60754-1:2011(total amount of halogen acid gas)
· Corrosivity of combustion gas in accordance with IEC 60754-2:2011(acidity)
· Low smoke density, in accordance with IEC61034-2:2005+A12013+A2:2020
· Customization is acceptable for products with special structures, other sizes, cores and colors of sheathing.
-
03 Technical certification
· Comply with RoHS standards
· Comply with Directive 2014/35/EU-Guideline (" Low Voltage Directive ")CE
·Comply with TUV certification

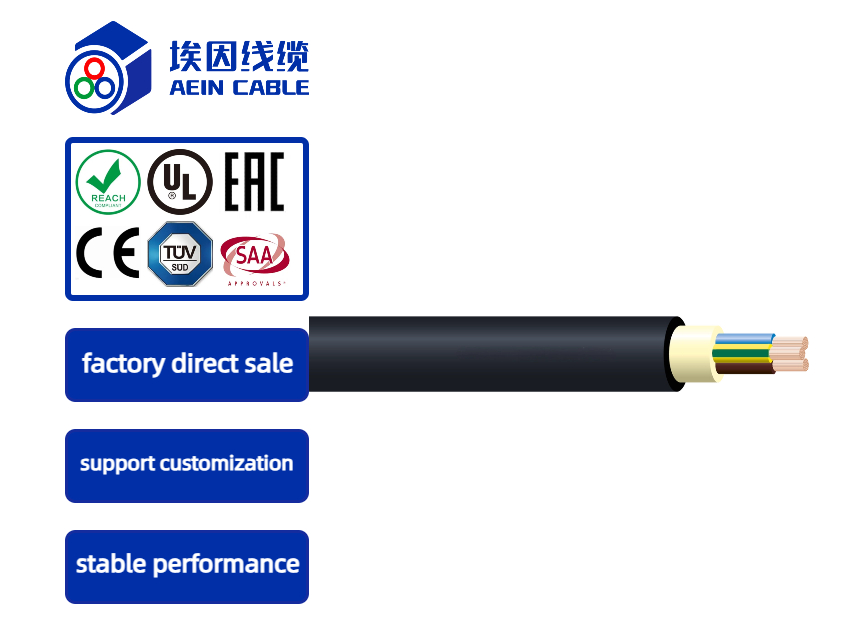

Product structure
Conductor material: bare copper wire
Conductor type: Compliant with IEC 60228 cl.5 cl.2 Optional
Insulation: Type G18 crosslinked elastomer compound
Sheath :M16 type halogen-free thermoplastic compound
Core identification: two cores red and blue; Three cores red yellow green; Four cores red yellow green blue; Five cores red yellow green blue yellow/green
Stranding: stranding in layers
Rated voltage :0.6/1kV
Test voltage: 3.5kV
Conductor operating temperature :250°C
Small bending radius fixed :7.5x d
Small bending radius movement :15x d
Fixed temperature :-40°C/+90°C
Moving temperature :-25°C/+90°C
Flame retardant grade: IEC 60332-1-2, EN50265-2-1
Standard :IEC60502-1, DIN VDE 0295
Product identification: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
