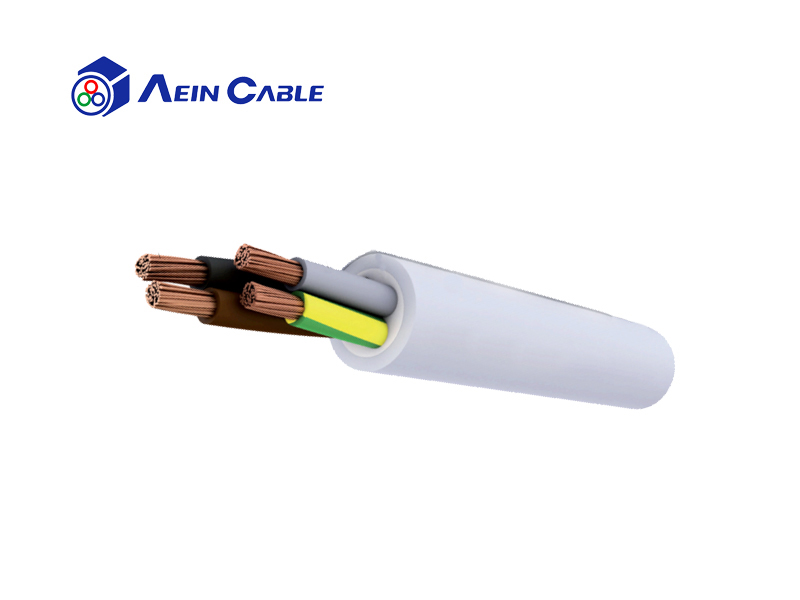

FG7OR PVC-sheath Power Cable with High Quality EPM-rubber

FG7OR - Power cable insulated with high quality EPM-rubber, with PVC sheath, not propagating fire, with reduced corrosive gas emission.This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

Certification : European CE certification

Voltage : 0.6/1KV 3.6/6KV

Low temperature : —5°C —15°C

High temperature : 70°C 80°C 90°C

Insulation material : Labeled

Sheath material : PVC

Shielding : Unshield

Installation way : Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

FG7OR - Power cable insulated with high quality EPM-rubber, with PVC sheath, not propagating fire, with reduced corrosive gas emission. This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected .
02 Product characteristics

Nominal voltage Uo/U [V]: 600 / 1000 Volt

Test voltage [V]AC: 4000

Temperature range: in motion -0°C do +90°C

Fixed -15°C do +90°C

Bending radius: 4 x diameter

Signal: 6 x diameter

Flammability: EN 60332-1-2
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor: fine wired copper, class 5

Insulation: rigid EPM rubber

thermoplastic compound, fire resistend, non water absorbing

Sheath: anti abrasive PVC compound, fire resistend, reduced wather permeability

Keywords: European CE certification
