Product introduction
-
01 Product application
Battery connection cables for battery connection and road vehicle applications.
-
02 Product characteristics
• Excellent resistance to high and low temperature, ozone, ultraviolet rays and weather resistance.
• High temperature resistance, engine oil, fuel oil, hydrolysis, flame retardancy, excellent wear resistance, easy peeling and processing.
• ISO 19642-9 table A.3
• ISO 6722-1 class D
• IEC 60228
-
03 Technical certification Conform to RoHS Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CEWe are pleased to produce special versions, other dimensions, core and jacket colours on request.

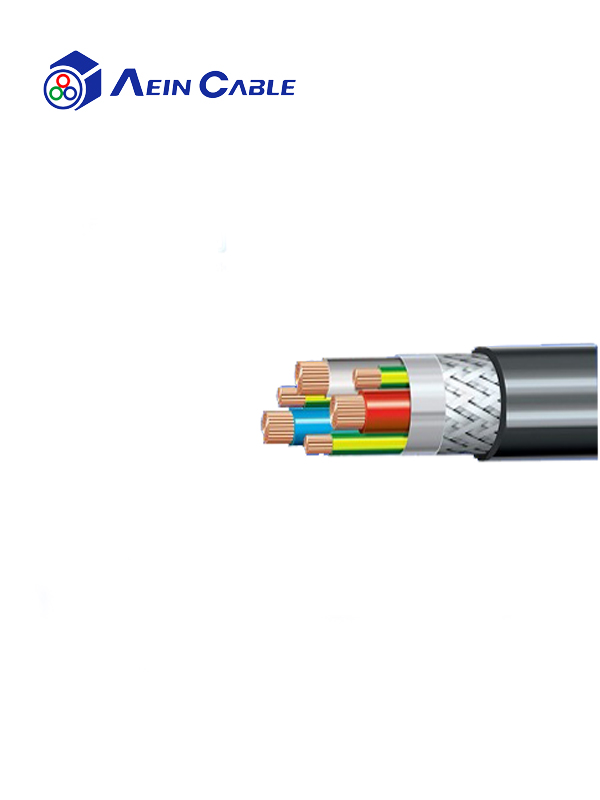

Product structure
Conductor: Stranded bare copper, class 2 or flexible tinned copper, class 5 (cross sections > 4 mm2)
Conductor resistance:acc. to LV 216-2 table A.2
Insulation: 91X：XLPO <6mm2 4G：EVA >6mm2
Core Identification: Orange
Shielding:The weaving density is not less than 85%, and the lapping rate is not less than 20%.
Outer sheath : High tear resistance silicone rubber
Operating temperature, range: -40 °C~+ 180 °C
Rated voltage: acc. to AC:1000V DC:1500V
Test voltage:5000V/5min
Minimum bending radius fixed:6x d
Minimum bending radius flexible:12x d
Burning behavor: Self - extinguishing and flame retardant;CSA C22.2 No.2556-15 FT2
Approvals:EN50525-2-41
Product identification:Aein bei ke E503807 ® AWM Model number specification temperature voltage c® AWM Ⅰ/Ⅱ A/B specification temperature voltage FT2 SHANGHAI AEIN Meter scale SHANGHAI
AEIN Model number specification voltage CE
