Product introduction
-

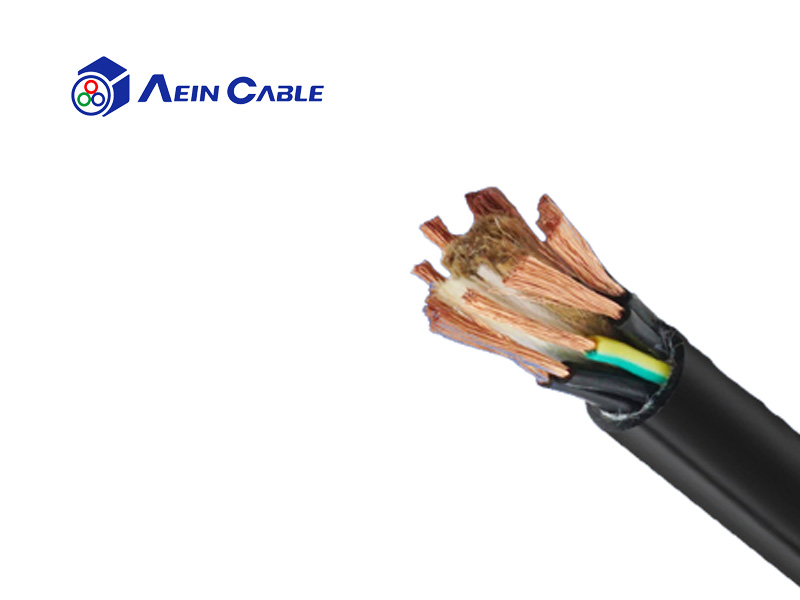

01 Product application Multi-core TPE-E insulation,TPE-U shielded low-voltage cables are used for ABS system, which have excellent wear resistance and better resistance to bending fatigue.
-
02 Product characteristics • Flame retardant
-
03 Technical certification • Conform to RoHS standard
• Conform to 2014/35/EU-Guideline(" Low voltage Directive ")CE
Product structure
Conductor material: Bare copper conductor acc. to DIN EN 13602 standard
Conductor class:ISO 6722 Class C
Core insulation: Polyester elastomer insulation TPE-E
Outer sheath: Thermoplastic Polyurethane sheath TPE-U
Core identification: Color acc. to DIN 47002 and DIN IEC 304 standard
Operat. temp. min/max: --40°C to +125°C
Burning behavor:Self - extinguishing and flame retardant IEC60332-1-2 standard
Product identification: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD Model number specification voltage CE
Product parameter
