FMGSGO Ship Wiring & Marine Cable

FMGSGO marine telecommunication cable for fixed installation on marine craft above and below decks is Halogen-Free, Copper Shielded. No loss of insulation if directly exposed to open flame. No special flame proof layer necessary.

Certification : European CE certification

Voltage : 300V

Low temperature :

High temperature : 80°C

Insulation material : EP

Sheath material :

Shielding : Shield

Installation way : Fixed installation

inquiry

Product details

Product introduction

01 Product application
FMGSGO marine telecommunication cable for fixed installation on marine craft above and below decks is Halogen-Free, Copper Shielded. No loss of insulation if directly exposed to open flame. No special flame proof layer necessary.
02 Product characteristics

Conductor Operating Temperature: Max. +85° C/+185° F

Nominal Voltage: 250 V

Minimum Bending Radius: Approx. 5x cable Ø

Halogen-free and flame retardant

Color code: All sizes and dimensions are color coded
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

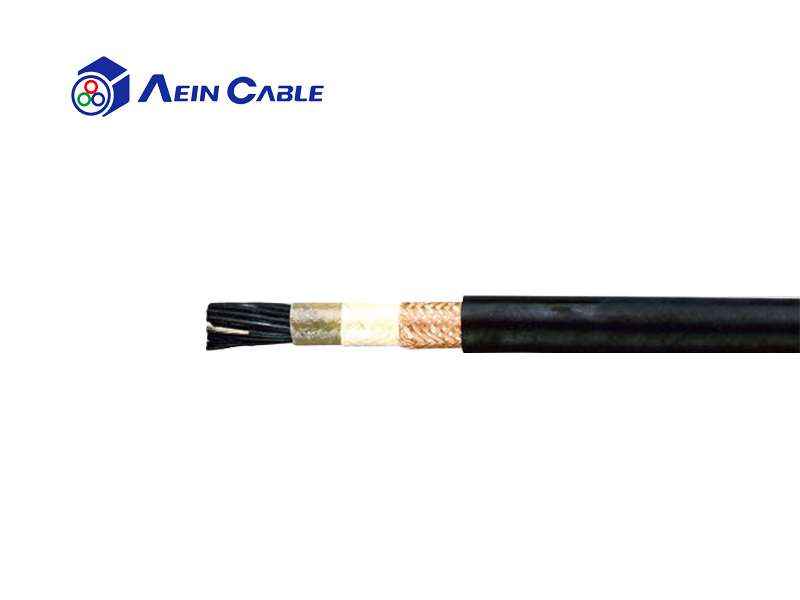

Product structure

Conductor: Stranded copper

Insulation: Heat resistant EPR-insulation

Conductor quad twisted

Filling compound covering all conductors

Shielding: Overall copper braided

Taping: Polyester foil

Outer jacket: Chloroprene based

Jacket color: black

Keywords: European CE certification
