H05RC4N-F Electrolytic Annealed Cables

These cables can be used on connections of fixed or mobile equipments which can be contacted with the hot surfaces in offices, kitchens, agricultural and industrial workshops.

Certification : European CE certification

Voltage : 300/500V

Low temperature :

High temperature : 200°C

Insulation material : Labeled

Sheath material :

Shielding : Shield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

These cables can be used on connections of fixed or mobile equipments which can be contacted with the hot surfaces in offices, kitchens, agricultural and industrial workshops.
02 Product characteristics

OZONE RESISTANT
COLD RESISTANT
TEAR RESISTANT
UV RESISTANT
ELECTROMAGNETIC COMPATIBILITY
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

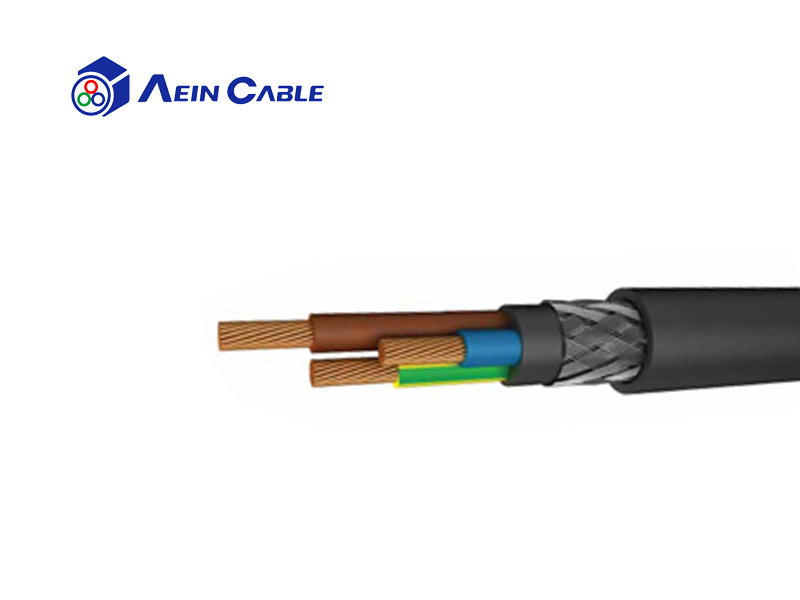

Product structure

CONDUCTOR : Electrolytic annealed, stranded plain copper wires (tinned conductor on request)

SEPARATOR : A suitable tape may be applied over the conductor

INSULATION : rubber (EPR) compound

INNER SHEATH : elastomer compound

SCREEN : Tinned copper wires braided

OUTER SHEATH : elastomer compound

COLOR : Black (other colors on request)

CONDUCTOR OPERATING TEMPERATURE : Max. 60ºC

CONDUCTOR SHORT-CIRCUIT TEMPERATURE : Max. 200ºC

TEMP. ON CABLE SURFACE : Max. +50ºC

MIN INSTALLATION TEMPERATURE : -25ºC

Keywords: European CE certification
