Product introduction
-

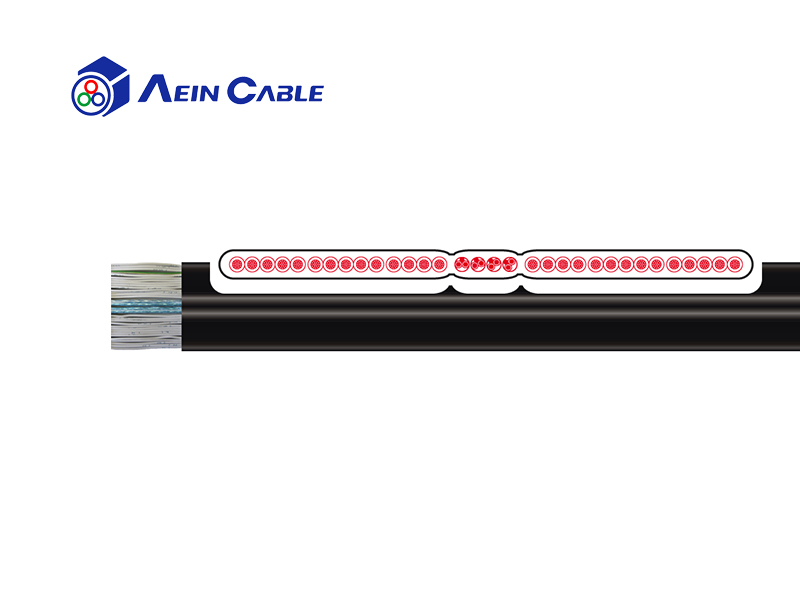

01 Product application(H)05VE7A7VH6-F elevator control flat cable is used for power and elevator control, suitable for horizontal bending and bending applications. Suitable for dry and humid rooms.
-
02 Product characteristics ·Reinforced outer sheath·High resistance to acids, alkalis and common oils ·Rugged version with reinforced outer sheath
-
03 Technical certification •Conform to RoHS standard
•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure
Conductor material: Bare copper wire
Insulation: Cross-linked polyethylene | EN 50290-2-29
Core Identification: BK with WH numerals
Stranding: Stranded in pairs, cores stranded in layers
Element shielding: plastic clad aluminium foil with subjacent drain wire
Outer sheath: PVC
Jacket color: BLACK RAL 9005 (Optional)
Rated voltage: Uo/U: 300V/500V
Test voltage: Uo/U:1500V
Minimum bending radius fixd 7.5 x d
Operat. temp. fixed min/max:-40 °C / +70 °C
Operat. temp. fixed min/max:-5 °C / +70 °C
Flame retardant class Flame retardant class compliance. IEC 60332-1-2
Product identification:Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
Product parameter
