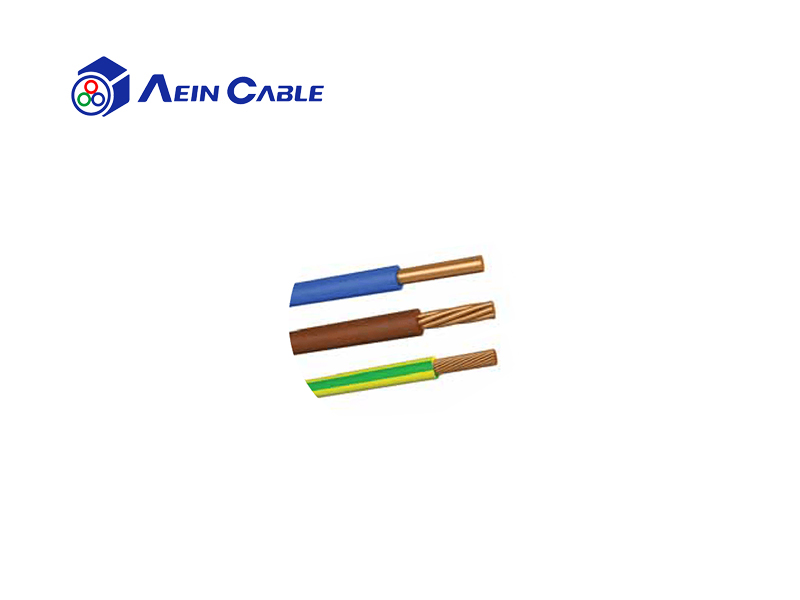

H05Z-U,K, H07Z-U,R,K Cable

These cables are used for high tempereture in internal installations.

Certification : European CE certification

Voltage : 450/750V

High temperature : 90°C

Low temperature : —15°C

Shielding : Unshield

Installation way : Fixed installation Occasional flexing

Environment : General outdoor environment General indoor environment

inquiry

Product details

Product introduction

01 Product application

These cables are used for high tempereture in internal installations.
02 Product characteristics
OZONE RESISTANT IMPACT RESISTANT

HALOGEN FREE

LOW SMOKE DENSITY
• All the usual standard colors are available.
03 Technical certification
•C onform to 2014/35/EU-Guideline (''Low voltage Directive'') CE •We are pleased to produce special versions, other dimensions, core and jacket co- lours on request.

Product structure

CONDUCTOR : Electrolytic annealed, plain copper wiress, class 1 for -U, class 2 for -R, class 5 for -K (tinned conductor on request)

SEPARATOR : A suitable tape may be applied over the conductor (if necessary)

INSULATION : EI8 Type rubber compound

CONDUCTOR OPERATING TEMPERATURE : Max. 90ºC

CONDUCTOR SHORT-CIRCUIT TEMPERATURE : Max. 250ºC

TEMP. ON CABLE SURFACE : Max. +90ºC

MIN INSTALLATION TEMPERATURE : +5ºC

MIN BENDING RADIUS : HD 516 Tab.7c

CURRENT CARRYING CAPACITIES : HD 516, VDE 0298-4

FLAME RETARDANT : EN/IEC 60332-1-2, DIN VDE 0482-332-1-2
