Product introduction
-
01 Product application Rubber sheathed cable for medium mechanical requirements. Used to connect handheld electrical equipment in the home and office. Suitable for dry, wet, wet indoor and outdoor use.
-
02 Product characteristics • Flame retardant in accordance with IEC 60332-1-2
• Oil resistance in accordance with EN 60811-404
-
03 Technical certification • Conform to RoHs standard • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

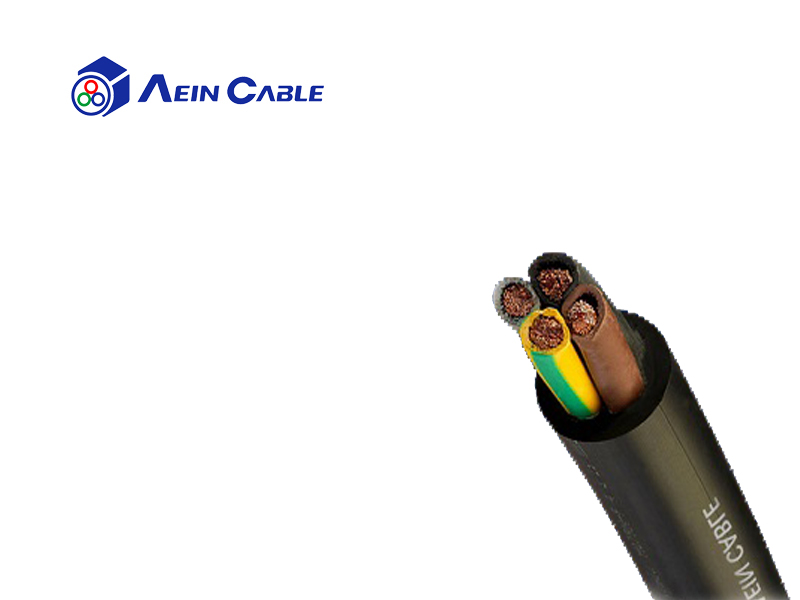

Product structure
Conductor material: Bare copper stranded wire
Insulation:Rubber compound of type IE4
Core identification: optional
Stranding: Twisted together / Laid parallel
Outer sheath: Rubber compound of type SE
Jacket color: Black
Rated voltage:Uo/U: 300/500 V
Test voltage: 2KV
Min. bending radius: 7.5 X d
Operat. temp. fixed min/max: -40 °C / +90 °C
Operat. temp. moved min/max: -5 °C / +80 °C
Burning behavior: Self-extinguishing and flame retardant IEC 60332-1 standard:60245 IEC 57
Product identification Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage
Product parameter
