Product introduction
-
01 Product application
Mainly used above and below deck of the ship as control and communication cables in radio, radar and information systems.
-
02 Product characteristics
FLAME RETARDATION : IEC 60332 /1, IEC 60332
WORKING TEMPERATURE : – 20°C / + 85°C
MIN. BENDING RADIUS (FIXED) : 7 x (Overall Diameter)
RATED VOLTAGE : 250 V
TEST VOLTAGE : 2,0 kV
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

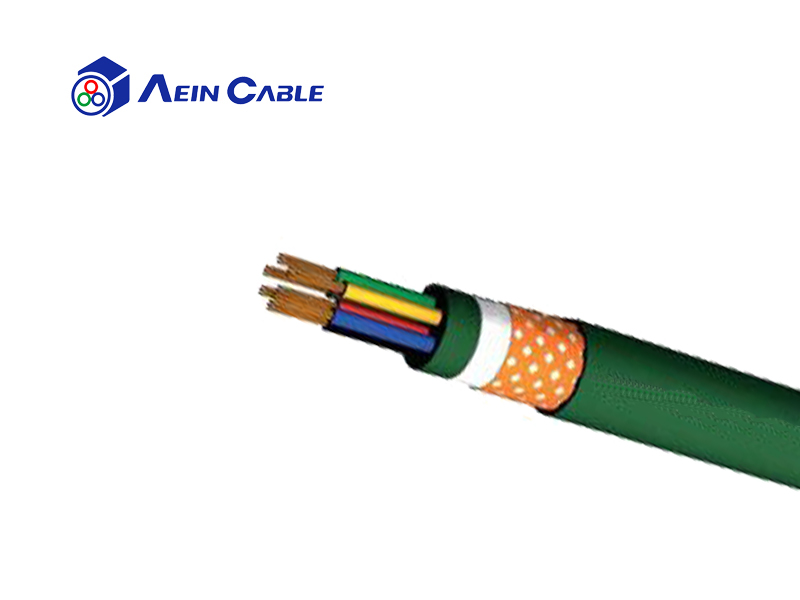

Product structure
CONDUCTOR : Electrolytic, stranded, annealed copper wire(tinned on request).
INSULATION : PVC insulation with Polyamide protective covering.
QUADDING : Four cores formed into a star-quad and star-quads laid up concentrically.
INNER SHEATH : PVC compound.
SEPARATOR : Water blocking tape.
SCREEN : Electrolytic copper braided screen (90% coverage).
OUTER SHEATH : Flame retardant, PVC based compound. Color: Green.
