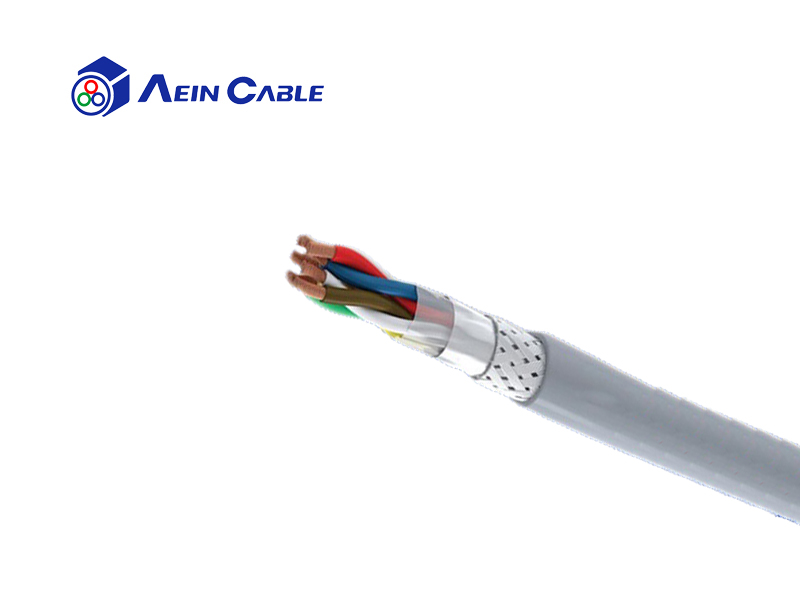

Conductor material: bare copper wire

Conductor class: acc.to IEC 60228 cl. 5 standard

Insulation: PE

Core identification :< 0,5 mm²: 5 cores and below are distinguished by color separation, acc. to Din 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥ 0,5 mm²: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to Din 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements)

Stranding: stranded in layers

Shielding: copper tinned braid pair-shield tinned; coverage approx. 70%

Outer sheath: PVC-H-70-001

Sheath color: Black RAL9005; greyRAL 7001

Rated voltage:< 0.5: 300/300V; ≥0.5: 300/500V

Testing voltage:< 0.5: 1500V; ≥0.5: 2000V

Conductor resistance: acc. to DIN VDE 0812

Insulation resistance: minimum 500 GΩ x km

Capacitance: maximum 60 nF/km (from 4 Pairs)

Minimum bending radius Fixed: 10 x d

Minimum bending radius Moved: 15 x d

Operat. temp. fixed min/max: -15 °C / +80 °C

Operat. temp. moved min/max: -5 °C / +80 °C

Standard: DIN VDE 0812

Product identification: Aein bei ke   SHANGHAI  AEIN  WIRE ＆ CABLE  CO.,LTD   Model number  specification voltage   CE   Meter scale
