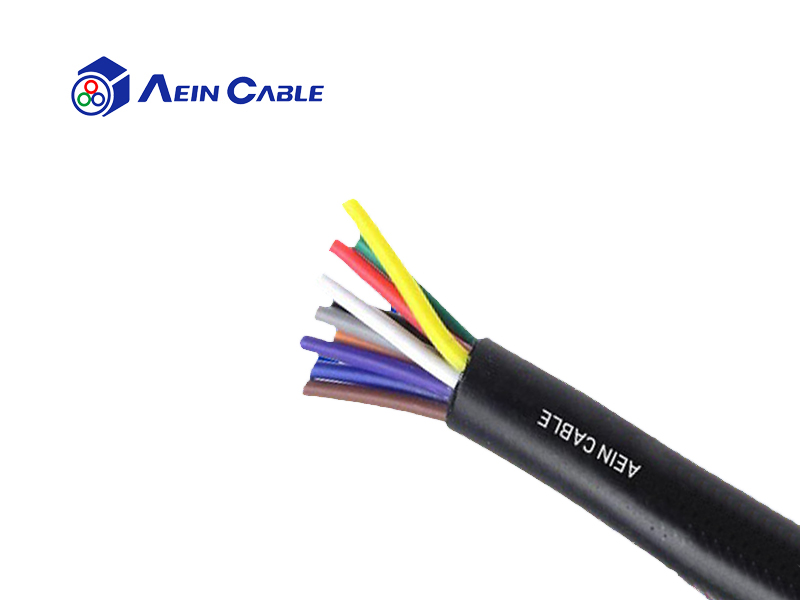

Li2YY CE Certified Cable

Li2YY CE Certified Cable

Data transmission, control and connection cables, mainly used for analog and digital signal transmission of process control facilities in measurement and control technology. Suitable for fixed laying and mobile applications, with no defined cable pathsand no tensile stress. Suitable for dry and humid indoor use.

Certification :   European CE certification

Insulation material :   PE

Sheath material :   PVC

Shielding :   Unshield

Installation way :   Occasional flexing     Fixed installation

Environment :   General indoor environment     General outdoor environment

Low temperature :   —15°C

High temperature :   80°C

Voltage :   300/500V

inquiry
  • Product details
Product introduction

resource/images/e93444e33b724576bf7945aad54dca7a_21.png


  • 01 Product application Data transmission, control and connection cables, mainly used for analog and digital signal transmission of process control facilities in measurement and control technology. Suitable for fixed laying and mobile applications, with no defined cable pathsand no tensile stress. Suitable for dry and humid indoor use
  • 02 Product characteristics •Smaller OD diameter
    •Enable multifunctional applications
    •Cable capacitance is low and signal transmission time is short
  • 03 Technical certification •Conform to RoHS standard
    Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
    We are  pleased to produce special  versions, other dimensions, core and jacket colours on request.
Product structure

Conductor material: bare copper wire

Conductor class: acc. to IEC 60228 cl. 5 standard

Insulation: PE

Core identification :< 0,5 mm²: 5 cores and below are distinguished by color separation, acc. to Din 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥ 0,5 mm²: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to Din 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements)

Stranding: stranded in layers

Outer sheath: PVC-H-70-001

Sheath color: Black RAL9005; grey RAL 7001

Rated voltage: < 0.5: 300/300V; ≥0.5: 300/500V

Testing voltage: < 0.5: 1500V; ≥0.5: 2000V

Conductor resistance: acc. to DIN VDE 0812

Insulation resistance: minimum 500 GΩ x km

Capacitance: ca. 120 nF/km

Minimum bending radius Fixed: up to 12 mm Ø: 5 x d; up to 20 mm Ø: 7,5 x d; > 20 mm Ø: 10 x d

Minimum bending radius Moved: up to 12 mm Ø: 10 x d; up to 20 mm Ø: 15 x d; > 20 mm Ø: 20 x d

Operat. temp. fixed min/max: -15 °C / +80 °C

Operat. temp. moved min/max: -5 °C / +80 °C

Standard: DIN VDE 0812

Product identification: Aein bei ke   SHANGHAI  AEIN  WIRE & CABLE  CO.,LTD   Model number  specification voltage   CE   Meter scale
