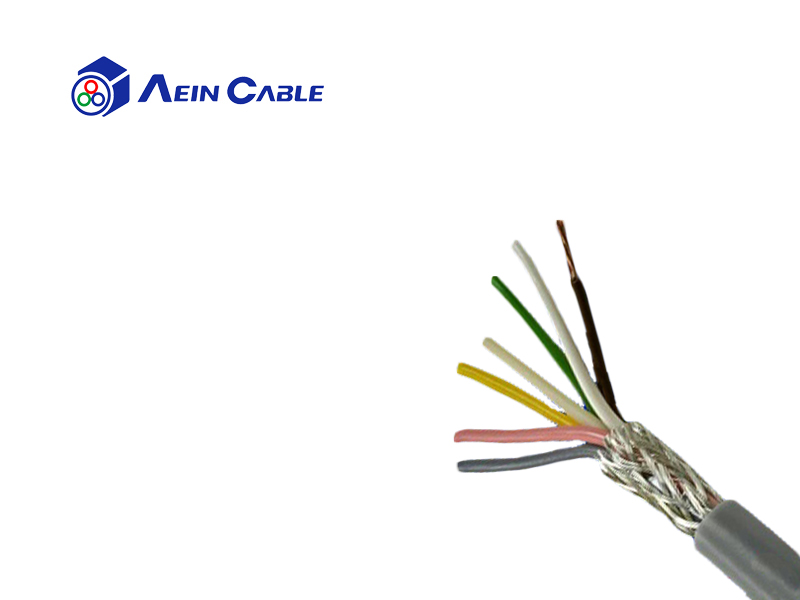

LIHCH EU CE Certification Low Smoke Halogen Free Signal Transmission Cable

LIHCH EU CE Certification Low Smoke Halogen Free Signal Transmission Cable

Halogen-free and environmentally friendly data transmission, control and connection cables are used primarily for the transmission of analog and digital signals in process control facilities of measurement and control technologies, and for the lossless transmission of data and signals in fire-prone areas and facilities with high concentrations of personnel and property values. Suitable for fixed laying and flexible applications, no clear cable path, no tensile stress. Suitable for dry and wet indoor use.

Certification :   European CE certification

Voltage :   500V     300V     300/500V

High temperature :   80°C     125°C

Low temperature :   —5°C     —15°C

Insulation material :   XLPE

Sheath material :   LOSH

Shielding :   Shield

Installation way :   Fixed installation     Occasional flexing

Environment :   General indoor environment     General outdoor environment

inquiry
  • Product details
Product introduction
  • 01 Product application Halogen-free and environmentally friendly data transmission, control and connection cables are used primarily for the transmission of analog and digital signals in process control facilities of measurement and control technologies, and for the lossless transmission of data and signals in fire-prone areas and facilities with high concentrations of personnel and property values. Suitable for fixed laying and flexible applications, no clear cable path, no tensile stress. Suitable for dry and wet indoor use.
  • 02 Product characteristics -FRNC (Flame retardant, non-corrosive)
    -LSF 0H (Low smoke, zero halogen)
    -Recommend for EMC application
  • 03 Technical certification • Conform to RoHs standard• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

Conductor material: bare copper wire

Conductor class: In accordance with IEC 60228 cl. 5standard

Insulation:HDPE,XLPE(Optional)

Identification of core wire: < 0,5 mm²:5Core and below the use of color separation, in line withn. DIN 47100.5Multi-core cable above core adopts core separation , white ink dot distinguish; ≥ 0,5 mm²: 5Core and below use color separation, containing yellow/Green line, matchn. DIN 47100.5Multi-core cable above the core adopts black core wire, white ink numbered to distinguish(If there are special requirements to customize)

Stranding: Stranded in layers

Shield: tinned copper braid, coverage rate is about70%.

Outer sheath: special halogen-free compound

Jacket color: Gray RAL 7001;black RAL9005;

Rated voltage:0.5 And below 300/300V; 0.5 above 300/500V

Test voltage:0.5 above 300/500V0.5 And below 1500V;0.5 above 2000V

Conductor resistance: YesIEC 60228 cl. 5 standard

Insulation resistance: minimum 200 MΩ x km

Capacitor: core/core about 120 nF/km; core/Masking contract 160 nF/km

Minimum bending radius fixed:20 mm The following Ø 7,5 x d, > 20 mm The following Ø 10 x d

Minimum bending radius moved:20 mm The following Ø 15 x d, > 20 mm The following Ø 20 x d

Operat. temp. fixed min/max:-40 °C / +90 °C ; -40 °C / +125 °C optional

Operat. temp. moved min/max:-5 °C / +90 °C ; -5 °C / +125 °Coptional

halogen-free:No halogen, yesIEC 60754-2 standard

Smoke density:IEC 61034-2 standard

Burning behavior:Halogen-free and flame retardant, conforming IEC 60332-1-2standard

Standard:referenceDIN VDE 0812

Product identification:Aein bei ke   SHANGHAI  AEIN  WIRE & CABLE  CO.,LTD   Model number  specification voltage   CE
