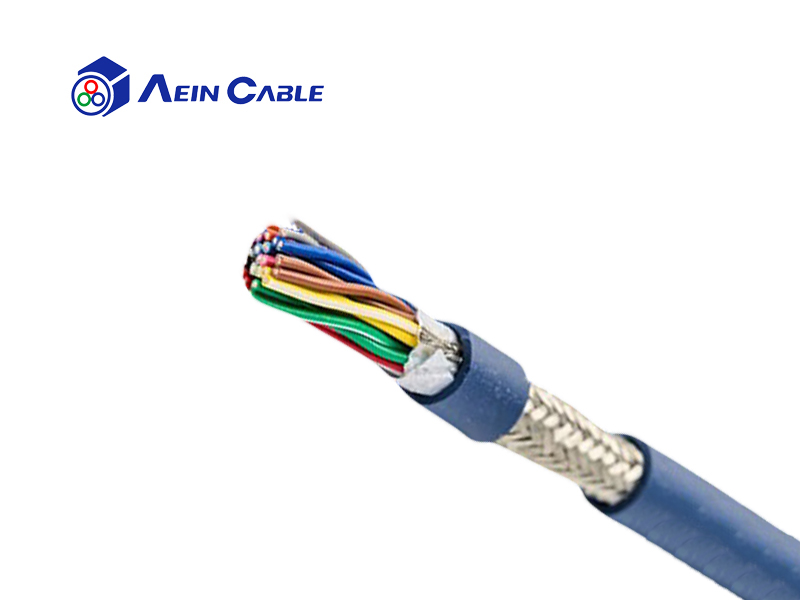

LiYCY CE Certified Shielded Data Transmission Cable

LiYCY CE Certified Shielded Data Transmission Cable

Data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology for lossless transmission of datas and signals. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.

Certification :   European CE certification

Shielding :   Shield

Installation way :   Fixed installation     Occasional flexing

Environment :   General indoor environment     General outdoor environment

Insulation material :   PVC

Sheath material :   PVC

Low temperature :   —15°C

High temperature :   80°C

Voltage :   500V

inquiry
  • Product details
Product introduction

resource/images/e93444e33b724576bf7945aad54dca7a_11.png


  • 01 Product application

    Data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology for lossless transmission of datas and signals. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.

  • 02 Product characteristics • Largely resistant to acids, bases and specified types of oil.
    Recommend for EMC application
  • 03 Technical certification •Conform to RoHS standard
    Conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
    We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

Conductor material: bare copper wire

Conductor class: acc. to IEC 60228 cl. 5 standard

Insulation: SR PVC-J-80-001

Core identification :< 0,5 mm²: 5 cores and below are distinguished by color separation, acc. to Din 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥ 0,5 mm²: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to Din 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements)

Stranding: stranded in layers

Shield: copper braid tinned, coverage approx. 70%

Outer sheath: PVC-H-70-001

Sheath color: Black RAL9005; grey RAL 7001

Rated voltage: Uo/U: 250 V; peak-voltage on 0,14 mm² 350 V; > 0,14mm² 500 V

Testing voltage: on 0,14 mm² core/core: 1,5 kV; core/shield: 1kV > 0,14mm²: core/core: 2kV; core/shield: 1,5kV

Conductor resistance: acc. to IEC 60228 cl. 5 standard

Insulation resistance: minimum 20 MΩ x km

Capacitance: ca. 120 nF/km

Minimum bending radius Fixed: up to 12 mm Ø: 5 x d; up to 20 mm Ø: 7,5 x d; > 20 mm Ø: 10 x d

Minimum bending radius Moved: up to 12 mm Ø: 10 x d; up to 20 mm Ø: 15 x d; > 20 mm Ø: 20 x d

Operat. temp. fixed min/max: -15 °C / +80 °C

Operat. temp. moved min/max: -5 °C / +80 °C

Standard: DIN VDE 0812

Product identification: Aein bei ke   SHANGHAI  AEIN  WIRE & CABLE  CO.,LTD   Model number  specification voltage   CE   Meter scale
