LMGSGO Halogen-free Light Ship Power Cable

Suitable for fix installation on marine craft above and below deck as a control and energy cable. These cables are not suitable for permanent installation in and under water.

Certification : European CE certification

Voltage : 500V

Low temperature : —5°C

High temperature : 80°C 70°C

Insulation material : Labeled

Sheath material :

Shielding : Shield

Installation way : Fixed installation

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application
Suitable for fix installation on marine craft above and below deck as a control and energy cable. These cables are not suitable for permanent installation in and under water.
02 Product characteristics
halogen-free , flame-retardant

Rated voltage: 500/500V

Min. bending radius moved: 5xd

Working temp fixed min/max: -10° C up to +85

Working temp moved min/max: -10° C up to +85

Temp at conductor max: +85°C in operation
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

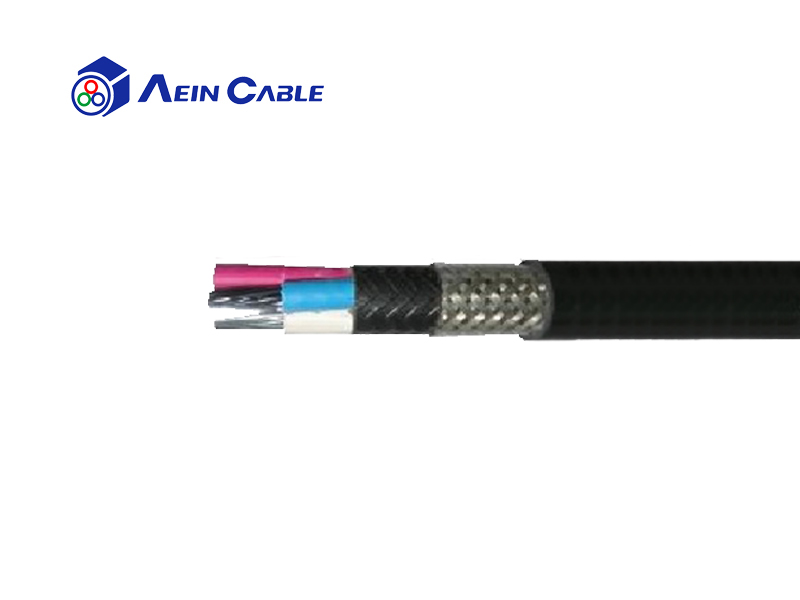

Product structure

Conductor: stranded, tinned copper

Insulation: EPR, heat-resistant

Core marking:
2 cores: black, blue
3 cores: black, blue, brown
4 cores: black, blue, brown, black
5-37 cores: numbered beginning with NR1 from inside to outside

Stranding: cores twisted into layers

Overall sleeve halogen-free

Foil made of polyester

Outer sheath: elastomere compound , black

Screened

Keywords: European CE certification
