MPRXCX Power & Control Cables with Screen 150/250V

MPRXCX Power & Control Cables with Screen 150/250V

MPRXCX type is used on board of ships for fixed installations. The good screening qualities of the braid also reduce radio interference and electrical influences to electronic installations. MPRXCX type fire test on bunched cables and performs to the SOLAS requirements. All materials used to manufacture this cable are halogen-free. This design ensures that non corrosive and low toxic gases are emitted in case of fire. Therefore, this cable type is especially designed for installations on passenger ships.

Certification :   European CE certification

Voltage :   0.6/1KV

Low temperature :   —40°C

High temperature :   80°C

Insulation material :   XLPO

Sheath material :   NBR

Shielding :   Shield

Installation way :   Fixed installation

inquiry
  • Product details
Product introduction
  • 01 Product application

    MPRXCX type is used on board of ships for fixed installations. The good screening qualities of the braid also reduce radio interference and electrical influences to electronic installations. MPRXCX type fire test on bunched cables and performs to the SOLAS requirements. All materials used to manufacture this cable are halogen-free. This design ensures that non corrosive and low toxic gases are emitted in case of fire. Therefore, this cable type is especially designed for installations on passenger ships.

  • 02 Product characteristics

    Halogen free: IEC 60754-1

    Sheath colour: Grey

    Conductor cross-section: 0.75 mm²

    Fire retardant: IEC 60332-3-22

    Flame retardant: IEC 60332-1

    Gases toxicity: No

    Electro magnetic interference resistance: Yes

  • 03 Technical certification • Conform to RoHSWe are pleased to produce special versions, other dimensions, core and jacket colours on request.

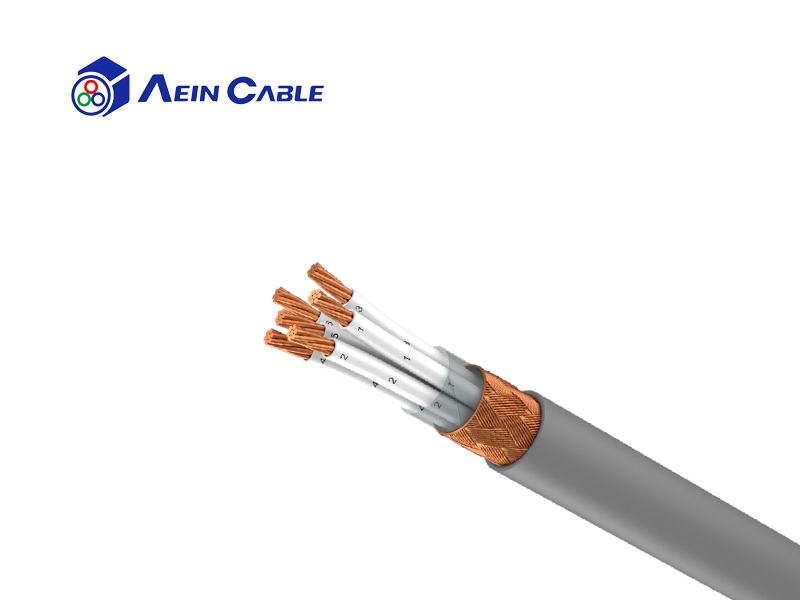

Product structure

Conductor: Stranded bare copper, class 2

Insulation: XLPE (cross-linked polyethylene)

Inner covering: (Filler, if necessary) Lapped

Armour: Bare copper braid

Outer Sheath: Polyolefin SHF1 (SHF2 on request)

Colour: grey

Electro magnetic interference resistance: Yes

Max. conductor temperature in service: 90 °C

Operating temperature, range: -30 - 80 °C
