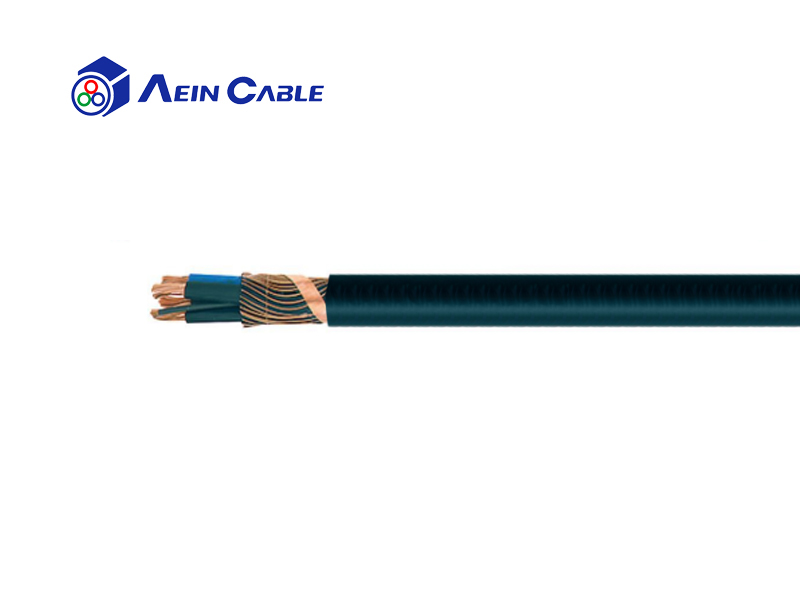

N2XCWY XLPE Copper Wire Shield Power Cable

As control and power supply cables can be installed indoors and outdoors, underground or in water. Suitable for use in industrial and control equipment, e.g., power plants. It is particularly suitable for use as a control cable for pulse control and data testing in customer networks and power stations.

Certification : European CE certification

Voltage : 0.6/1KV

Low temperature : —5°C —40°C —15°C

High temperature : 70°C

Insulation material : Labeled XLPE

Sheath material : PVC

Shielding : Shield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

As control and power supply cables can be installed indoors and outdoors, underground or in water. Suitable for use in industrial and control equipment, e.g., power plants. It is particularly suitable for use as a control cable for pulse control and data testing in customer networks and power stations.
02 Product characteristics

Rated voltage: 0.6/1 KV

Test voltage: 4000V

Minimum bending radius: single core 15 x cable outside diameter

Multi-core 12× cable outer diameter

Temperature range: mobile installation: -5°C to +50°C

Fixed installation: -40°C to +70°C

Flame retardant
03 Technical certification Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

XLPE insulation

Ring-shaped copper wire concentrically stranded

outer copper band wrapped

PVC outer sheath (Customizable low-smoke, halogen-free LSZH sheath,model number: N2XCWH)

Keywords: European CE certification
