Product introduction
-
01 Product application
N2XCY cables are suitable for installation on the ground, indoors or outdoors, cable slots and outdoors. For power distribution industrial applications, including urban networks and home feeders.
-
02 Product characteristics
· Rated voltage Uo/U:0.6/1kV
·IEC 60502-1,VDE 0276-603,IS 1516.1
-
03 Technical certification
·
Comply with RoHS standards
· Compliance with 2014/35/EU- Guideline ("Low Voltage Directive ")CE

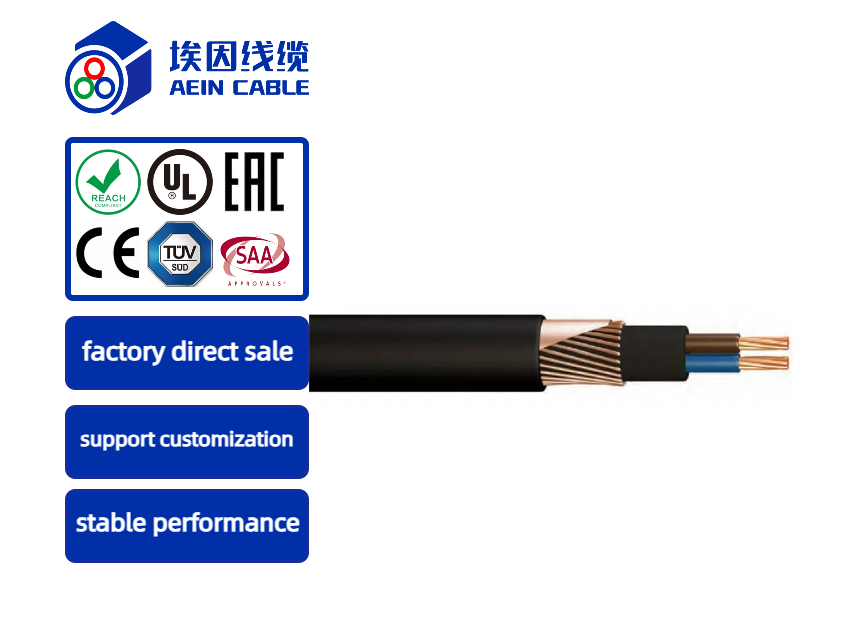

Product structure
Conductor material: bare copper wire
Conductor class: According to IEC 60228 cI.5 standard
Insulation :XLPE
Core identifier: Black core with self-colored numbers
Stranding: stranding in layers
Outer sheath :PVC
Jacket color: black, RAL9005 or grey RAL7001
Rated voltage :0.6/1 kV
Test voltage :4 kV
Conductor resistance: According to IEC 60228 cI.5 standard
Capacitance: core/core about 120 nF/km; Core/shield about 160 nF/km
Small bending radius :7.5 x d
Small bending radius :15 x d
Temperature rating fixed :-15°C/+90°C
Temperature rating shift :-5°C/+90°C
Flame retardant rating :IEC 60332-1-2
Standard :HD 603-3GIEC60502
Product identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO,LTD Model Specification Voltage CE meter standard
