N2XRY Steel Wire Armoured Multi-core Cables

These cables with a low dielectric loss coupledwith mechanical resistance are mainly used in energy networks with sudden load change residential or industrial areas. Can be laid outdoors, undergrounds and in areas where sudden mechanical stresses are expected.

Certification : European CE certification

Voltage : 0.6/1KV

Low temperature : —15°C —5°C

High temperature : 90°C

Insulation material : Labeled XLPE

Sheath material : PVC

Shielding : Shield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

These cables with a low dielectric loss coupledwith mechanical resistance are mainly used in energy networks with sudden load change residential or industrial areas. Can be laid outdoors, undergrounds and in areas where sudden mechanical stresses are expected.
02 Product characteristics

Mechanical resistance to impacts: Good
Flame retardant
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

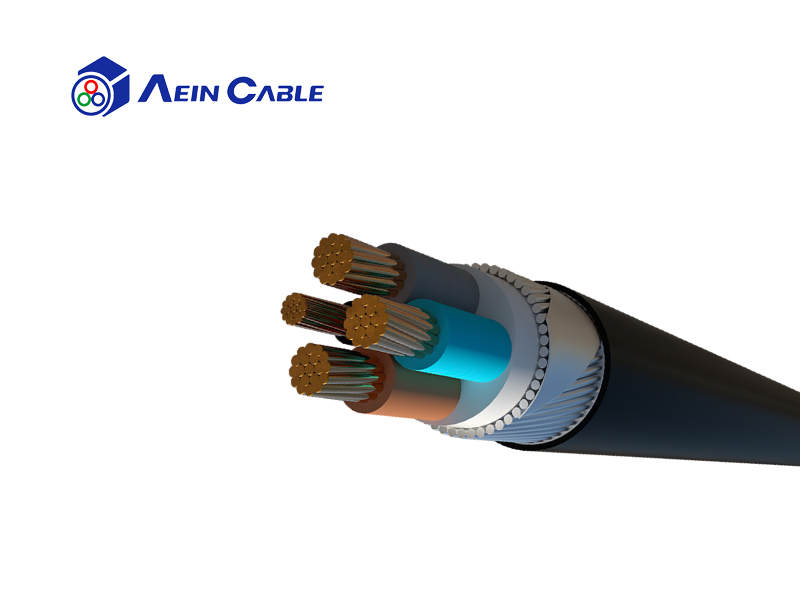

Product structure

Conductor: Copper

Insulation: XLPE

Filler / inner sheath: PVC

Armour: Single layer galvanized round steel wires

Outer Sheath: PVC

Rated Voltage Uo/U (Um): 0.6/1 kV

Bending factor when laying 12 (xD)

Maximum operating temperature 90 °C

Operating temperature, range -20 - 60 °C

Keywords: European CE certification
