N2XSY XLPE Insulated Single-Core Cable

To be laid directly in ground, outdoors, indoors and in cable ducts.

Certification : European CE certification

Voltage : 0.6/1KV 6/10KV

Low temperature : —5°C

High temperature : 70°C

Insulation material : Labeled PE

Sheath material : PVC

Shielding : Shield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

To be laid directly in ground, outdoors, indoors and in cable ducts.
02 Product characteristics

Test voltage: 6 / 10 kV 21 / 5 min.

12 / 20 kV 42 / 5 min.

18 / 30 kV 63 / 5 min.

Temperature range: in motion -5°C till +70°C

fixed -20°C till +70°C

Operating temperature: short circuit 250°C

Bending radius: min. 15 x diameter
03 Technical certification Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

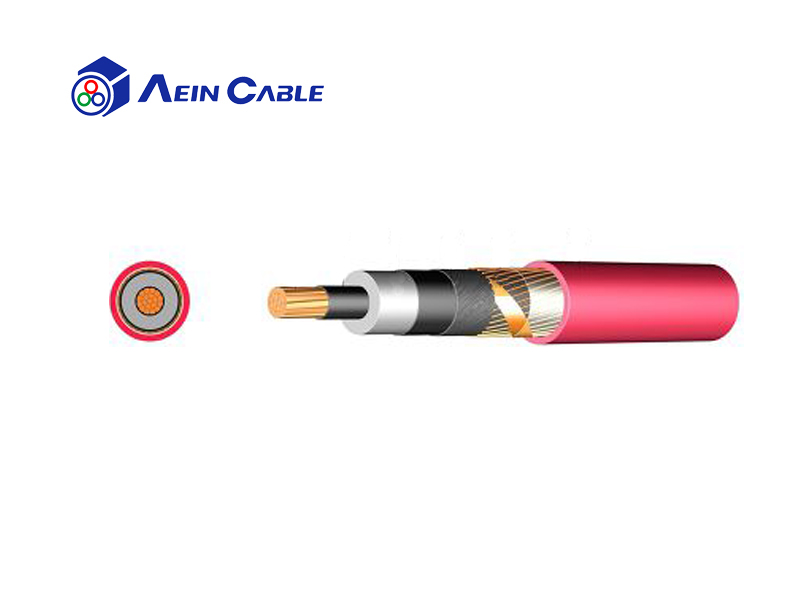

Product structure

stranded (RM) bare copper

inner layer of semi-conducting material

core insulation of cross-linked polyethylene

outer layer of semi-conducting material

screen of copper wires

outer sheath of polyvinylchloride (PVC), red
