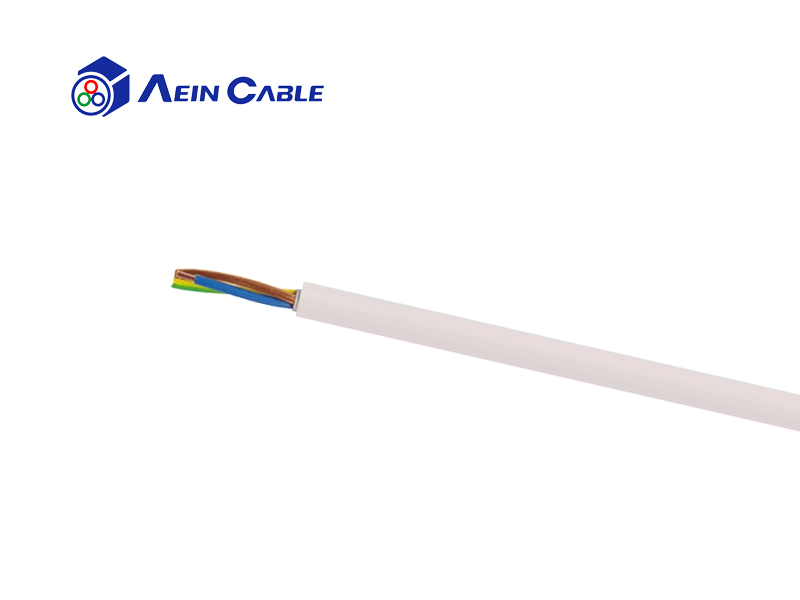

NHXMH-J / NHXMH-O Halogen-free Installation Cable

Halogen-free installation cables with enhanced characteristics in case of fire are used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Suitable for outdoor installation as long as the cable is protected against direct sunlight.

Certification : European CE certification

Voltage : 300V 500V 1.8/3KV

Low temperature : —15°C —5°C

High temperature : 70°C

Insulation material : XLPE

Sheath material : LOSH

Shielding : Unshield

Installation way : Fixed installation

Environment : General outdoor environment

inquiry

Product details

Product introduction

01 Product application

Halogen-free installation cables with enhanced characteristics in case of fire are used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Suitable for outdoor installation as long as the cable is protected against direct sunlight.
02 Product characteristics

resistant to: ozone

halogen-free

flame-retardant

reduced fire propagation, low smoke development
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor: bare copper

Core insulation: XLPE

1 core(s): black oder green-yellow

2 - 5 core(s): colour coded

7 core(s): black cores with consecutive labeling in white digits

G = with protective conductor GN-YE,

x = without protective conductor

Cores stranded in layers with optimal lay lengths

Core sheating (filling compound) for multi-core cables

Outer sheath: halogen-free polymer

Sheath colour: grey

Temperature range fixed: -30°C to +70° C

during installation: +5°C to +70°C

Permissible operating temperature of the conductor: +70°C

Short circuit temperature at the conductor: +250°C

Nominal voltage: AC U0/U 300/500 V

Test voltage core/core: 2000 V

Minimum bending radius: fixed 4x Outer-Ø

Keywords: European CE certification
