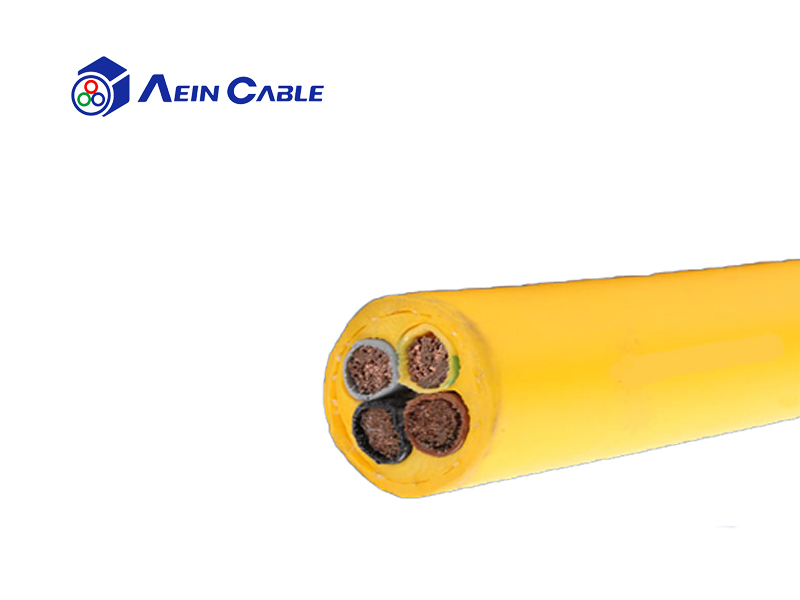

Product introduction
-
01 Product application Reel cable has tensile stress and/Or torsional stress. Suitable for dry, wet and wet rooms, outdoor use as well as construction sites, commercial and agricultural plants. Used in lift, transmission and conveyor systems. In the case of unfixed can be wound and pay-off operation.
-
02 Product characteristics • Oil resistance, acid and alkali resistance, wear resistance, UV resistance
• Not only used for power towing chains, but also can be used as cable, reel cable and traction cable • The sheathing is compounded with support layers to prevent unnecessary twisting of the cable and the formation of the so-called spiral effect
-
03 Technical certification • Conform to RoHS• Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Structural parameter
Conductor material: Tinned copper stranded wire
Conductor class: In accordance with DIN VDE 0295 5 Class, refer to IEC 60228 5 class
Core insulation: Rubber compound
Identification of core wire:≤ 5 Core: Color core,6 Core and above: white numbered black core, with or without GNYE
Hinge:Layered stranding
Inner jacket: Special rubber compound
Torsional braid: Polyester fabric woven in a wide network
Outer sheath:PUR
Jacket color:Black (optional)
Rated voltage:0.6/1 kV
Test voltage:3.5kV
Min. bending radius fixed:10XD
Min. bending radius moved:7.5XD
Operat. temp. fixed min/max: -50 °C / +90 °C
Operat. temp. moved min/max:-40 °C / +90 °C
Burning behavior: Self-extinguishing and flame retardant grade meet IEC60332-1
Oil resistance: Meet EN 60811-2-1
Standard:In accordance with or in conformity with DIN VDE 0250
Product parameter
