Product introduction

01 Product application

For flexible use and fixed installation open-cast mining applications, in quarries, on construction sites and similar applications, with heavy mechanical stresses. The cables can be used indoors as well as outdoors, in explosion-hazard areas, in industry and in agriculture. They can be used permanently in waste water up to 40°C at a depth of max. 2000 m and in industrial water, cooling water, surface water, rainwater and mixed water - and in groundwater and seawater to a more limited extent. The requirements for accessibility and inspection depend on the consistency of the water.In aggressive water or composed of special substances, the cable's resistance properties should be tested.
02 Product characteristics

Reaction to fire

Resistance to oil

Weather resistance Unrestricted use outdoors and indoors, resistant to ozone and moisture

Water resistance
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

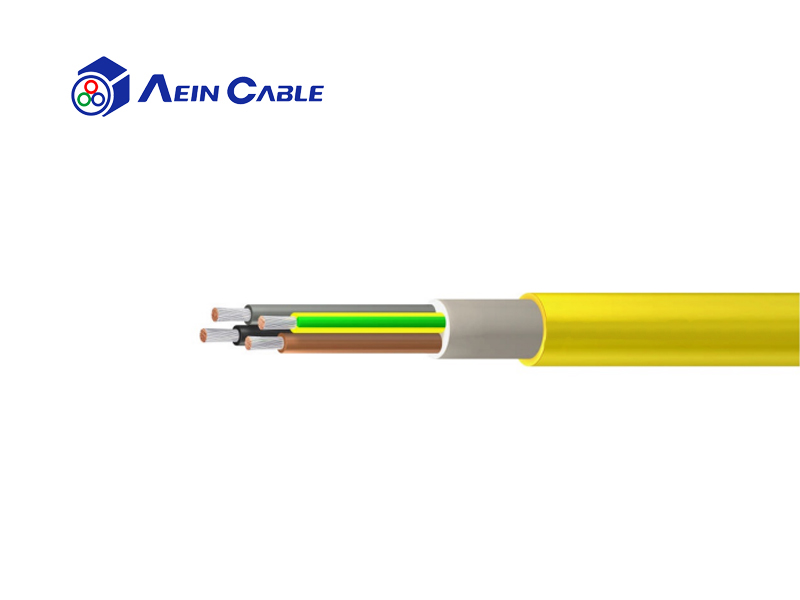

Product structure

Conductor Copper, tinned, finely stranded

Insulation material: EPR, Compound

Core identification Up to 5 cores: colored in gray, black, brown, blue, green/yellow

from 6 cores: light gray with black digits

Core arrangement Three main conductors laid-up together with the protective-earth conductor, from 50 mm² with

protective-earth conductor split into three in the outer interstices

Inner sheath Vulcanized rubber compound, Basic material: EPR, Compound

Outer sheath Vulcanized rubber compound, synthetic elastomer compound

Rated voltage 0.6/1 kV (600/1000V)

Max. permissible operating voltage AC 0.7/1.2 kV

Max. permissible operating voltage DC 0.9/1.8 kV

AC test voltage - main cores 3 kV (5 Min.)

Max. permissible temperature at conductor 90 °C

Max. short circuit temperature of the conductor 250 °C

Max. permissible water temperature 40 °C (At higher water temperatures, a shortened cable service life is to be expected)

Ambient temperature for fixed installation min -40 °C ; max +80 °C

Ambient temperature in fully flexible operation min -25 °C ; max +60 °C

Keywords: European CE certification
