Product introduction
-
01 Product application
These cables are used for the connection of electrical operating equipment in industrial water, notably for submersible pumps. 3-core cables without earth cores are used where the ascending pipe serves as earth conductor.
-
02 Product characteristics
Flexible
Heat resistant
Tear resistant
Oil resistant
Flame retardant
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

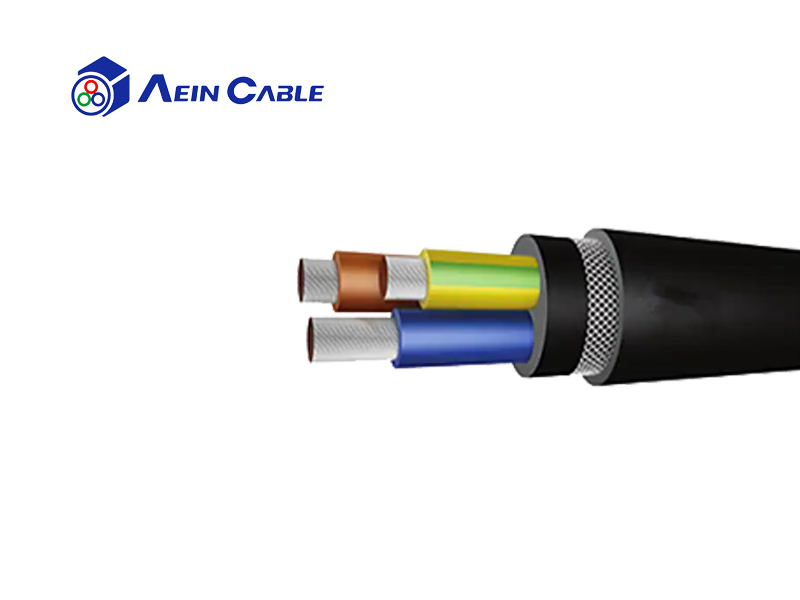

Product structure
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation: Heat resistant EPR.
Inner Sheath: Rubber type GM1b.
Outer Sheath: Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant (for 0.6/1kV). Chlorinated rubber type 5GM3, oil resistant and flame retardant (for 1.8/3kV, 3.6/6kV).
