NSSHOEU.../3E+ST 0.6/1KV Heavy Duty Flexible Mining Cable

NSSHOEU.../3E+ST 0.6/1KV Heavy Duty Flexible Mining Cable

The cable is used for the connection of mobile equipment with high mechanical load, and can be used in dry and wet environments, outdoors and areas with explosion hazards, especially suitable for coal mines, quarries and construction sites.

Certification :   European CE certification

Voltage :   0.6/1KV

Low temperature :   —15°C     —40°C

High temperature :   90°C

Insulation material :   EP

Sheath material :   PVC

Shielding :   Shield

Installation way :   Occasional flexing

Environment :   General indoor environment     General outdoor environment     Corrosive environment

inquiry
  • Product details
Product introduction
  • 01 Product application


    The cable is used for the connection of mobile equipment with high mechanical load, and can be used in dry and wet environments, outdoors and areas with explosion hazards, especially suitable for coal mines, quarries and construction sites.


  • 02 Product characteristics

    • Flame retardancy according to EN 60332-1-2; IEC 60332-1-2;
    • Abrasion and tear resistance, oil and ozone resistance
    • For special structure, other size, core wire and sheath color products can be customized.

  • 03 Technical certification ·RoHS Compliant
    ·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
    We are pleased to produce special versions, other dimensions, core and jacket colours on request.

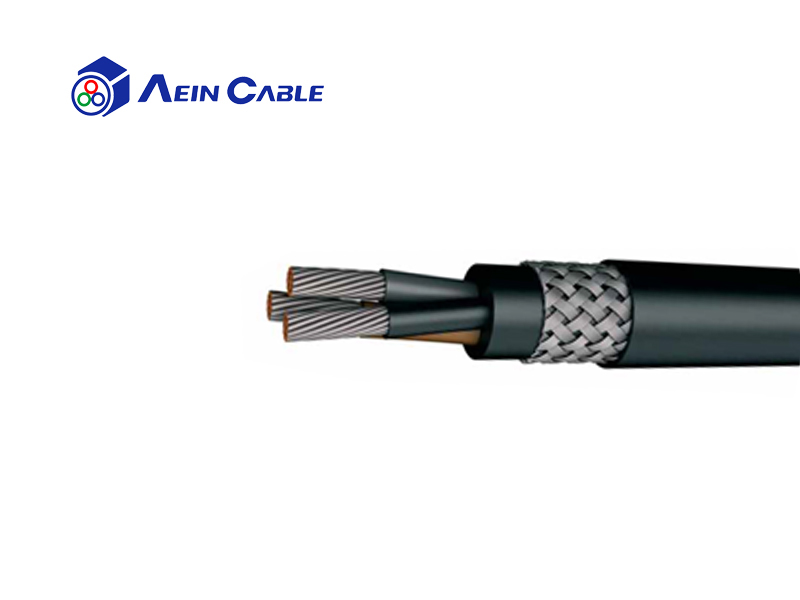

Product structure

Conductor: DIN VDE 0295 standard class 5 soft stranded tinned copper conductor.

Insulation: Type 3GI3 heat resistant EPR.

Earthing wires: Tinned copper wires arranged in a helix outside the core insulation (code .../3E) or concentrically between the inner and outer sheaths (code ...kon).

Control wire: located in the gap, wrapped with film.

Inner Sheath: Type GM1 Rubber.

Outer sheath: Type 5GM5 chlorinated rubber, wear-resistant, tear-resistant, oil-proof, and flame-retardant.

Rated voltage: 0.6/1kV

Test cable: 2500V

Conductor resistance: in accordance with IEC 60228 standard

Temperature class Fixed: -40°C / +90°C

Temperature Rating Mobile: -15°C / +90°C

Flammability rating: IEC 60332-1-2

Standard: VDE 0250 Part 812
