(N)TSWÖU-J Tinned Copper Wire Trailing Cables

Good CableChoose AEIN for international markets!

187 0215 2883

Location： Home > Product > By standard > CE certified cable > (N)TSWÖU-J Tinned Copper Wire Trailing Cables

hot keywords：

(N)TSWÖU-J Tinned Copper Wire Trailing Cables

Used in open and underground mines

Certification : European CE certification

Voltage : 0.6/1KV 3.6/6KV 1.8/3KV

Low temperature : —5°C —15°C —40°C

High temperature : 90°C 70°C 80°C

Insulation material : Labeled

Sheath material :

Shielding : Unshield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

Used in open and underground mines
02 Product characteristics

OZONE RESISTANT
COLD RESISTANT
TEAR RESISTANT
EX-PROOF
UV RESISTANT
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

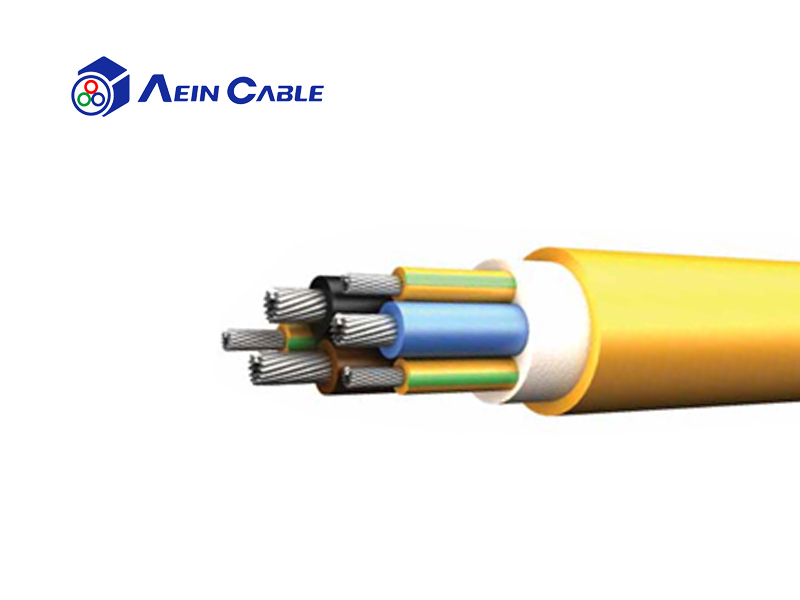

Product structure

CONDUCTOR : Electrolytic, stranded, tinned copper wire

INSULATION : All cores are insulated with compound

LAY UP : All cores are laid up in contact with each other and interstitial ground cores.

BEDDING : Special elastomeric compound

OUTER SHEATH : Heavy duty elastomer outer sheath

CONDUCTOR OPERATING TEMPERATURE : Max. 90ºC

CONDUCTOR SHORT-CIRCUIT TEMPERATURE : Max. 250ºC

WORKING TEMPERATURE : Fixed : -40ºC … +80ºC

Mobile : -25ºC … +80ºC

Keywords: European CE certification
