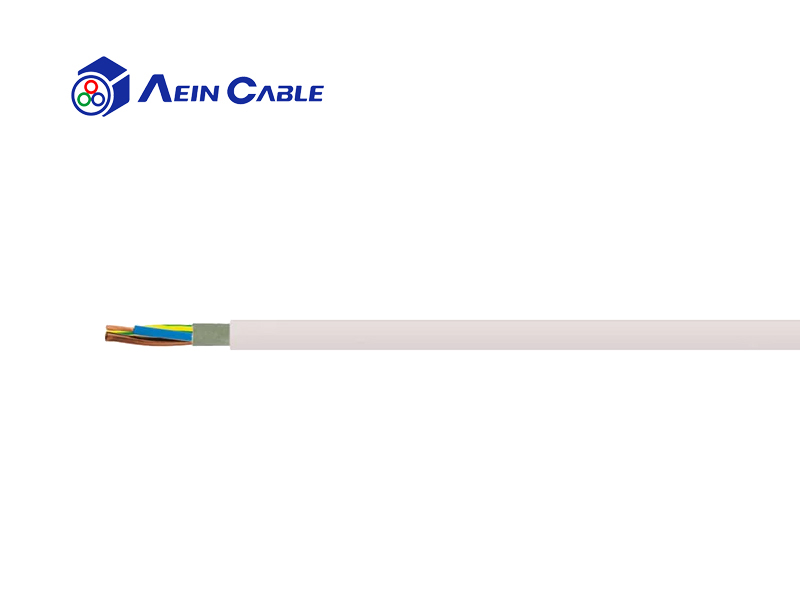

NYM-J PVC Installation Cable

For industrial and domestic installations; suitable for dry, damp and wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Suitable for outdoor installation as long as the cable is protected against direct sunlight.

Certification : European CE certification

Voltage : 300V 500V 1.8/3KV

Low temperature : —5°C —15°C —40°C

High temperature : 70°C

Insulation material : PVC

Sheath material : PVC

Shielding : Unshield

Installation way : Fixed installation

Environment : General outdoor environment

inquiry

Product details

Product introduction

01 Product application

For industrial and domestic installations; suitable for dry, damp and wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Suitable for outdoor installation as long as the cable is protected against direct sunlight.
02 Product characteristics

Flame-retardant

Temperature range fixed: -40°C to +70° C during installation: +5°C to +70 ° C

Nominal voltage: AC U0/U 300/500 V

Test voltage core/core: 2000 V

Minimum bending radius fixed: 4x Outer-Ø
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor: bare Copper

Core insulation: PVC

1 core(s): black or green-yellow

2 - 5 core(s): colour coded

7 - 12 core(s): black cores with consecutive labeling in white digits

Cores stranded in layers with optimal lay lengths

Core sheating (filling compound) for multi-core cables

Outer sheath: PVC

Sheath colour: grey

Keywords: European CE certification
