NYRY Galvanized Steel Wire Armored Cables

0.6/1 kV, galvanized steel wire armored, single or multi-core power cables are used in generally underground where high tensile stresses and mechanical protection are needed during the operation. These are resistant to increasing operating temperature in the short term.

Certification : European CE certification

Voltage : 0.6/1KV

Low temperature :

High temperature : 70°C

Insulation material : PVC Labeled

Sheath material :

Shielding : Shield

Installation way : Fixed installation Occasional flexing

Environment : General indoor environment General outdoor environment Corrosive environment

inquiry

Product details

Product introduction

01 Product application

0.6/1 kV, galvanized steel wire armored, single or multi-core power cables are used in generally underground where high tensile stresses and mechanical protection are needed during the operation. These are resistant to increasing operating temperature in the short term.
02 Product characteristics

Operating Voltage: 0.6/1 kV

Test Voltage: 3.5 kVMax.

Operating Temperature: 70 °C

Min. Bending Radius: Single Core: 15 x Cable Diameter, Multicore: 12 x Cable Diameter
03 Technical certification Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

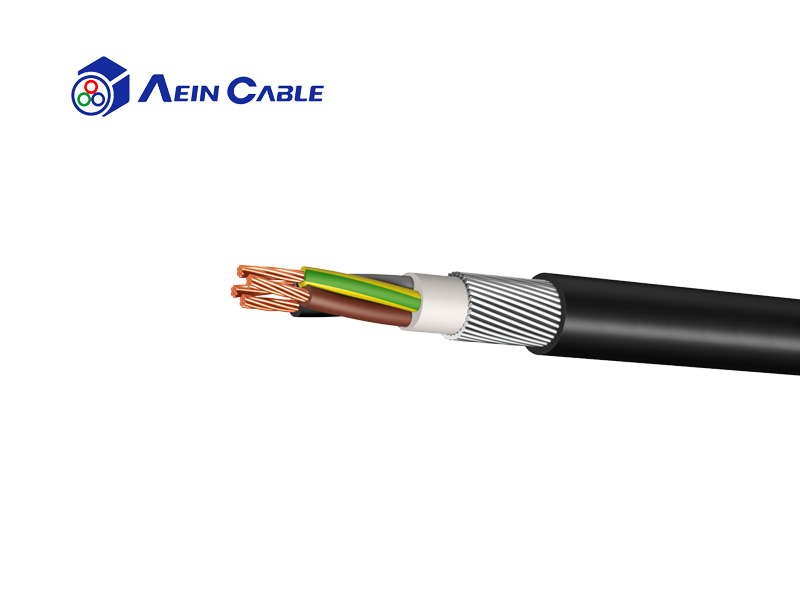

Product structure

Conductor: Solid or Stranded Annealed Copper

Insulation: PVC

Filler: PVC

Armour: Round Galvanised Steel Wire

Keywords: European CE certification
