Product introduction
-
01 Product application
In dry and wet conditions as supply cable or remote control and signal cable in assembling lines, machine tools, automatics, etc., at medium mechanical strains. Not designed for laying in the open air.
-
02 Product characteristics
Nominal voltage Uo/U: 300/500 V
Test voltage:2000V
-
03 Technical certification • Conform to RoHS • We are pleased to produce special versions, other dimensions, core and jacket colours on request.

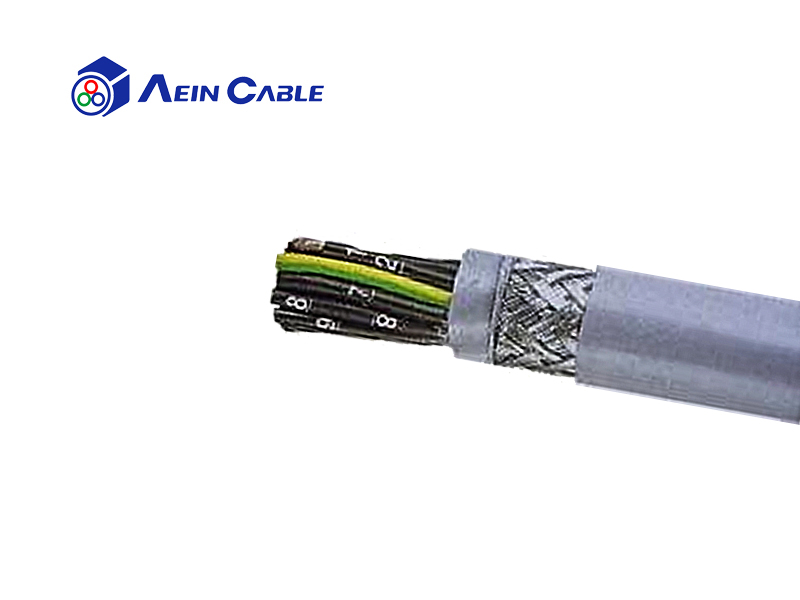

Product structure
Conductor:Flexible, annealed copper strand
Insulation: Special PVC compound
Core: Cores are stranded together, concentric laid.
Inner sheath: PVC compound
Screen: Wrapped tinned copper wire designed to enable remote control and test signal transmission without interference and noise
Outer sheath: Special PVC compound providing high flexibility
Standard color of the sheath: gray
Permissable conductor temperature:
- in permanent operation, + 70°C
- in short crcuit (max 5s), 150°C
Working temperature:
- at laying and handling from + 5°C to + 70°C
- for moving cable from - 5°C to + 70°C
- for fixed cable from - 40°C to + 70°C
