Product introduction
-
01 Product application Used for power in power facilities, the laying methods include fixed laying and mobile laying. There is no clear cable path and no tensile stress. The cables are suitable for use in dry,damp and wet indoors.
-
02 Product characteristics •Conform toRoHS
•Flame retardant according to IEC 60332-1-2
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.
-
03 Technical certification •Conform to RoHS • Conform to TUV certified •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

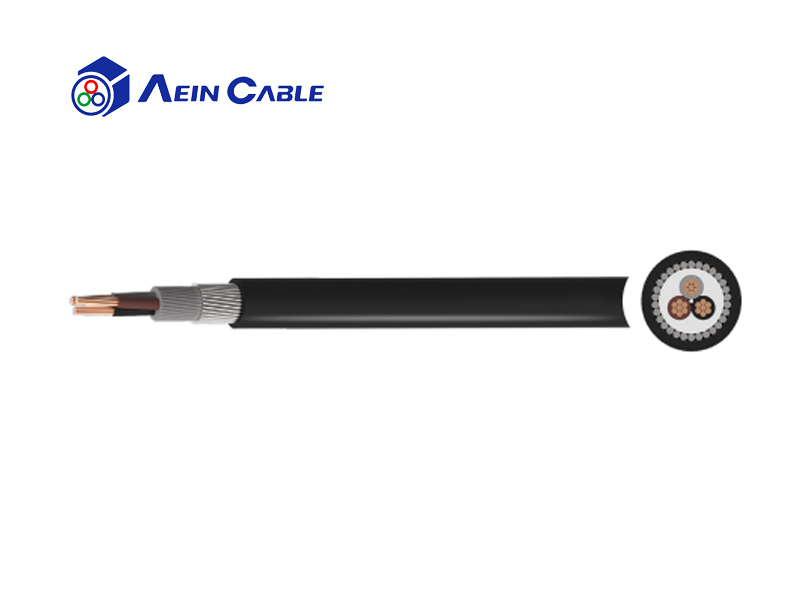

Product structure
Conductor material: bare copper wire
Conductor class: acc. to IEC 60228 c. 5 standard cl. 2 optional
Insulation: PVC
Core identification: two cores red blue; three cores red yellow green; four cores red yellow green blue; five cores red yellow green blue yellow/green
Stranding: stranding in layers
Armor: steel wire bundle armor
Outer sheath: PVC
Sheath color: Black, RAL 9005 Or gray RAL 7001
Rated voltage: 0.6/1kV
Test voltage: 3.5kV
Conductor resistance: acc. to IEC 60228 cl. 5 standard
Rated temperature of cable conductor: 70℃
Cable conductor temperature does not exceed 160°C during short circuit (long duration does not exceed 5s)
Minimum bending radius (Fixed): 7.5 x d
Minimum bending radius (Moved): 15 x d
Fixed temperature :-15 °C / +70 °C
Operating temperature (Fixed): -5 °C / +70 °C
Operating temperature (Moved): IEC 60332-1-2
Standard: HD 603-3G IEC60502
Product identification: Aein bei ke® SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter mark
Product parameter
