Product introduction
-
01 Product application Cables are suitable for flexible use under moderate mechanical stress and can be moved freely without tensile stress or forced movement. For hazardous areas, cables with special markings (blue)(hazard type -i-) are used as flexible control and measurement
cables to meet the requirements of electrical equipment installation. These devices are not grounded and require a separate power circuit. Not suitable for underground laying. Copper wire braided shielding ensures data signal transmission without interference. EMC= Electromagnetic compatibility.
-
02 Product characteristics · Oil resistance
· Chemical resistance
PVC self-extinguishing and flame retardant in line with VDE0482-332-1-2, IEC 60332-1
-
03 Technical certification · RoHS compliant
· Compliance with 2014/35/EU-Guideline(" Low Voltage Directive ")CE

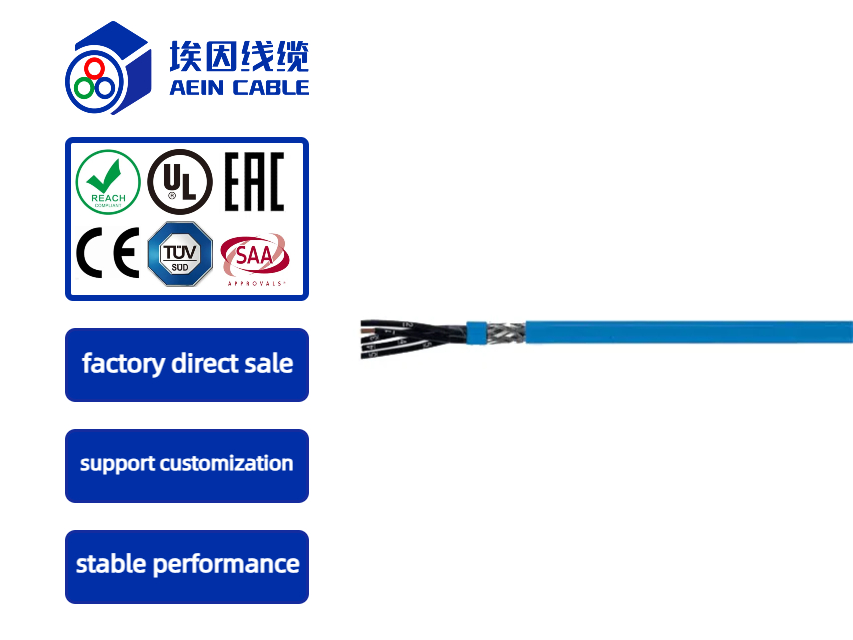

Product structure
Conductor material: bare copper
Conductor grade: According to IEC 60228 cl.5 class conductor standard
Core insulation: special PVC
Core identifier: black core, white ink number distinction (if there are special requirements on demand) without GN-YE wire
Cabling: stranding by layering
Shielding: Aluminum foil + tinned copper wire braid, density coverage of 80%
Outer sheath :TM2 special PVC
Jacket color: Blue (RAL 5005)
Rated voltage :300/500V
Test voltage :3000V
Small bending radius fixed :5 x d
Small bending radius movement :10 x d
Operating temperature fixed minimum/maximum value :-15°C/+80°C
Minimum/maximum operating temperature shift :-40°C/+80°C
Flame retardant rating: Flame retardant rating in accordance with IEC 60332-1-2
Printing mark: Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
