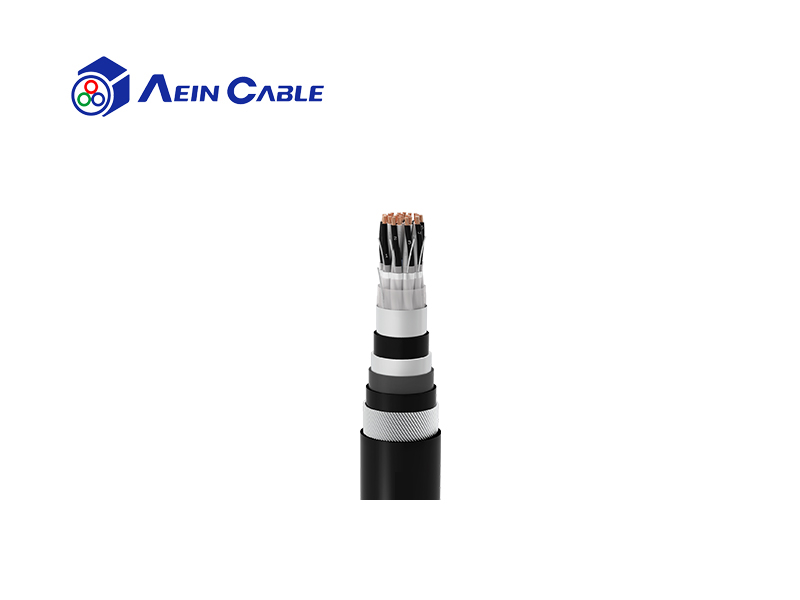

RE-2X(L)2Y4YSWAY-fl PIMFCable

RE-2X(L)2Y4YSWAY-fl PIMFCable

These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor and outdoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance sources, since they are not designed to be used for power supply. Recomended for use protection needed against aliphatic and aromatic hydrocarbons, engine oils and other organic and inorganic chemicals. This multi layer barrier provide also excellent protection against corrosion and moisture.

Certification :   European CE certification

Voltage :   500V

Low temperature :   —5°C     —40°C

High temperature :   90°C

Insulation material :   XLPE

Sheath material :   PVC

Shielding :   Shield

Installation way :   Occasional flexing     Fixed installation

Environment :   General indoor environment     General outdoor environment     Corrosive environment

inquiry
  • Product details
Product introduction
  • 01 Product application

    These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor and outdoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance sources, since they are not designed to be used for power supply. Recomended for use protection needed against aliphatic and aromatic hydrocarbons, engine oils and other organic and inorganic chemicals. This multi layer barrier provide also excellent protection against corrosion and moisture.


  • 02 Product characteristics

    Flame retardant

  • 03 Technical certification ·RoHS Compliant
    ·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
    We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

CONDUCTOR : Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)

INSULATION: XLPE compound to EN50290-2-29 Black / White twisted pairs with numbered cores

BINDER TAPE :Polyester foil on each twisted pair

INDIVİDUAL SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil

BINDER TAPE : Polyester foil on overall cable core formed by stranded pairs

COLLECTIVE SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil

INNER SHEATH :PVC compound to EN50290-2-22

CHEMICAL & MOISTURE BARRIER (MULTI LAYER SHEATH) :Longitudinally applied protective plastic coated Aluminum tape bonded with an extruded layer of high density polyethylene (HDPE) to 50290-2-4 and plus an additional extruded layer of Polyamide (PA)

ARMOUR :Round galvanised steel wires EN 10257-1

OUTER SHEATH :Flame retardant PVC compound to EN50290-2-22 Black colour. Other colours on request

RATED VOLTAGE :500 V a.c.

AC TEST VOLTAGE :2000 V x 1 min. (core:core / core: screen)

WORKING TEMPERATURE :-40°C / + 90°C (during operation) – 5 °C / + 50°C (during installation)

MIN BENDING RADIUS (FIXED) :10 x D
