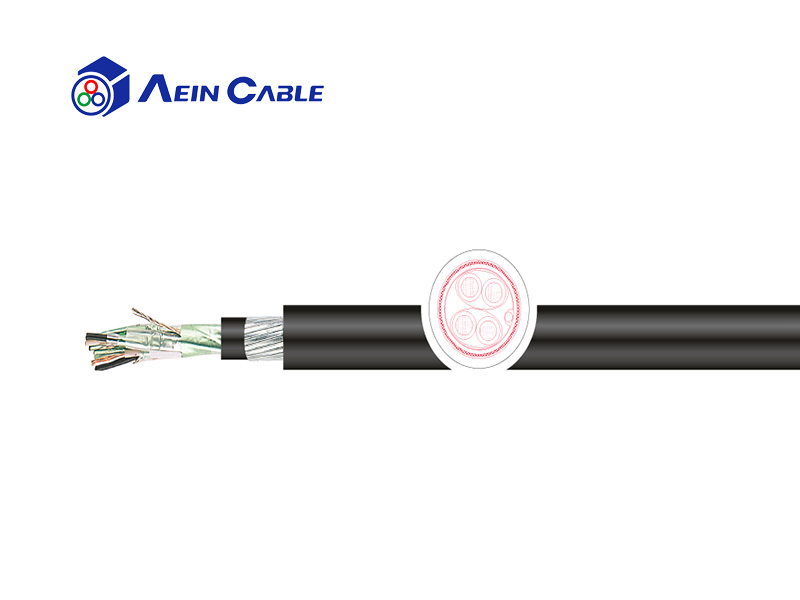

Conductor material: bare copper wire

Conductor type :IEC 60228 Class 1 solid annealed copper conductor or Class 2 multi-strand plain copper conductor

Core wire insulation :XLPE

Core cable identification: black, white, and red. The cables in the three-wire group are continuously identified by numbers (1,2,,,,) on the white core.
                                         Black/white, pairs of cables are continuously identified by numbers (1,2,,,,) on the white core

Pairs :2 or 3 insulated wire cores are twisted together to form pairs.

Stranding: three-wire group or pair group to lay the synthetic layer.

Separate shielding: Aluminum foil/plastic film with 0.5mm² tinned copper distribution wire is wrapped in the outer layer of the triplet or twine group.

Stranding: three wire group or pair stranding group to lay the synthetic layer.

Total shielding: Aluminum strip/polyester strip shield with 0.5mm² tinned copper drain line

Inner sheath: thermoplastic PVC composite

Armouring :EN 10257-1 galvanized steel wire armouring.

Outer sheath: thermoplastic PVC composite

Jacket color: black RAL 9005 or blue

Rated voltage :300/300V

Test voltage :1.5 kV

Conductor resistance: according to IEC 60228 standard

Small bending radius fixation :10 x d

Small bending radius movement :18 x d

Temperature rating fixed :-15°C/+90°C

Temperature rating shift :-5°C/+90°C

Flame retardant rating: IEC 60332-1-2

Standard :BS EN 50288-7 standard

Product identification :Aein beike SHANGHAI AEIN WIRE& CABLE CO.LTD Model Specification Voltage CE meter standard
