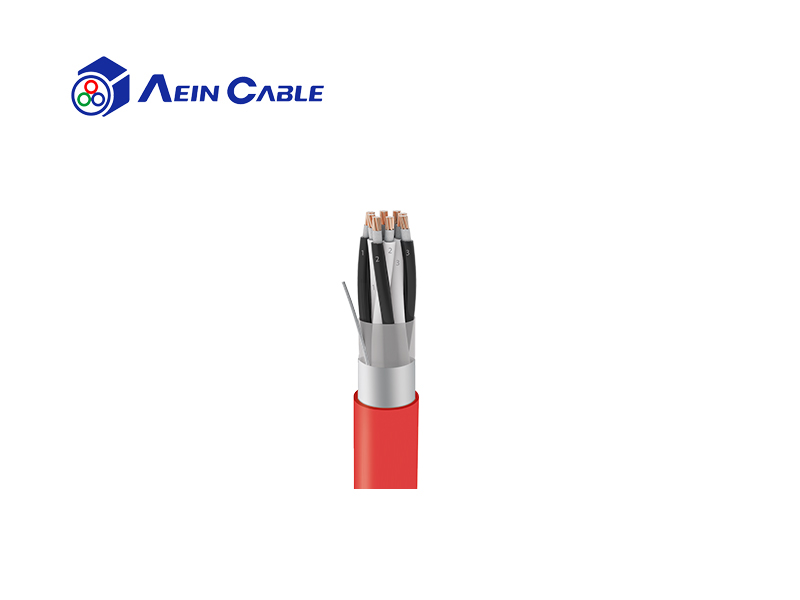

RE-2X(St)H..CI Cable

RE-2X(St)H..CI Cable

These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance sources, since they are not designed to be used for power supply. Recommended for use where circuit integrity is required in case of fire.

Certification :   European CE certification

Voltage :   500V

Low temperature :   —5°C     —40°C

High temperature :   90°C

Insulation material :   XLPE

Sheath material :

Shielding :   Shield

Installation way :   Occasional flexing     Fixed installation

Environment :   General indoor environment     General outdoor environment     Corrosive environment

inquiry
  • Product details
Product introduction
  • 01 Product application

    These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance sources, since they are not designed to be used for power supply. Recommended for use where circuit integrity is required in case of fire.


  • 02 Product characteristics

    UV resistant

    Flame retardant

  • 03 Technical certification ·RoHS Compliant
    ·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
    We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure

CONDUCTOR :Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)

INSULATION :Mica tape + XLPE compound to EN50290-2-29 Black / White twisted pairs with numbered cores

BINDER TAPE :Polyester foil on overall cable core formed by stranded pairs.

COLLECTIVE SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil

OUTER SHEATH :Halogen free flame retardant LSZH compound to EN50290-2-27 Orange or Red for circuit integrity Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable

RATED VOLTAGE :500 V a.c.

AC TEST VOLTAGE :2000 V x 1 min. (core:core / core: screen)

WORKING TEMPERATURE :-40°C / + 90°C (during operation) – 5 °C / + 50°C (during installation)

MIN BENDING RADIUS (FIXED) :7,5 x D
