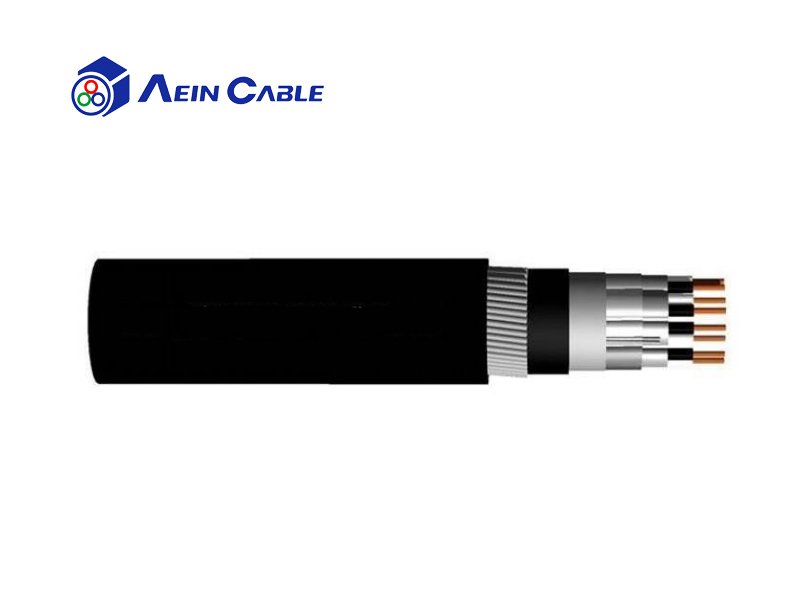

RE-2X(St)Y-fl Cables 300/500V

RE-2X(St)Y-fl Cables 300/500V

For transmission of analogue and digital signals in instrument and control systems, not allowed for direct connection to low impedance source, e.g. the public mains electricity supply.

Certification :   European CE certification

Voltage :   300V

Low temperature :   —5°C

High temperature :

Insulation material :   PE

Sheath material :   PVC

Shielding :   Shield

Installation way :   Occasional flexing     Fixed installation

Environment :   General indoor environment     General outdoor environment     Corrosive environment

inquiry
  • Product details
Product introduction
  • 01 Product application

    For transmission of analogue and digital signals in instrument and control systems, not allowed for direct connection to low impedance source, e.g. the public mains electricity supply.


  • 02 Product characteristics


    Flame retardant

    UV resistant

    Oil resistant

  • 03 Technical certification ·RoHS Compliant
    ·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
    We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Product structure


Conductor : Plain annealed stranded copper sizes 0.5mm², 1.0mm², 1.3mm², 1.5mm²

Insulation : PE

Wrapping : At least 1 layer of plastic tape

Collective screen : 24μm Aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5mm²

Outer sheath : Polyvinyl chloride PVC

Operating voltage : 300 V

Colour Code

Single pair : Black/white

Multi pair : Black/white numbered

Outer Sheath Colours

Available colours : Black or blue*

*other colours available on request

Min. Bending Radius : 10xD

Max. Conductor Operating Temperature : 60°C
