Product introduction
-
01 Product application
These cables are intended for transmission of analogue and digital signals. They allow transmission over long distances at high pulse rates. The individual screening of each pair limits the consequence of crosstalk. These cables are used in industrial
installations such as refineries, chemical plants etc where there is a potential risk of mechanical damage.
-
02 Product characteristics
Fire retardant
Oil resistance
Low smoke density
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

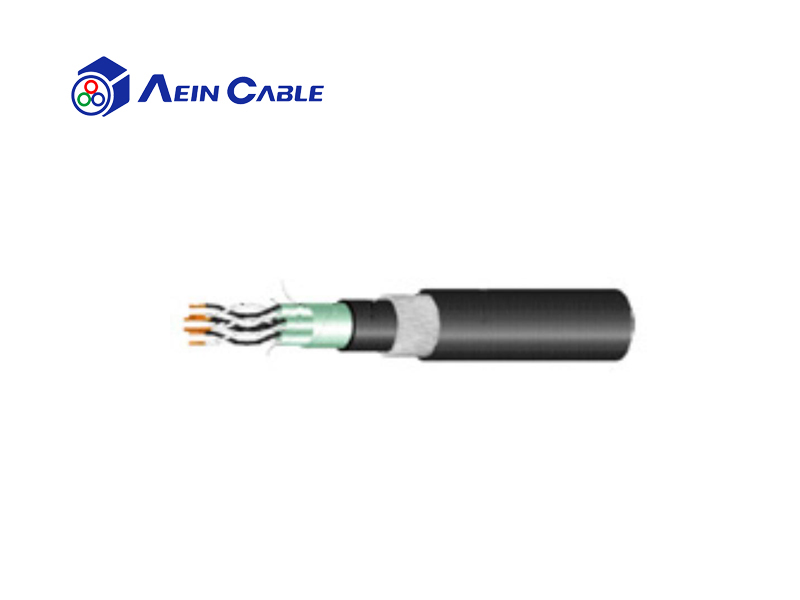

Product structure
Conductor material: Bare copper
Insulation: PE
Individual screen: Tinned copper drain wire + aluminium/polyester tape
Overall screen: Tinned copper drain wire + aluminium/polyester tape
Inner sheath: PVC
Armour type: Galvanized steel wires
Outer sheath: PVC
Operating voltage: 300 V
Operating temperature, range-20 ... 60 °C
Max. conductor temperature in service70 °C
